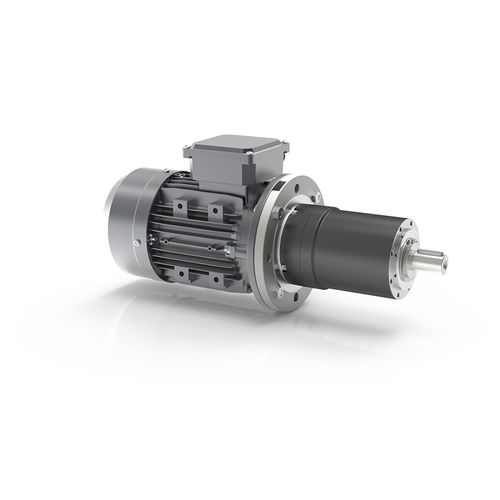

Planetary gearbox RG
coaxialsolid-shaft20 - 50 Nm

planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
planetary gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm
Number of stages
single-stage, two-stage
Performance
precision, low-backlash
Applications
building
Other characteristics
for DC motors, food
Rotational speed

Min.: 2,500 rpm
(15,707.96 rad.min-1)

Max.: 4,800 rpm
(30,159.29 rad.min-1)

Gear ratio

Min.: 3.1 unit

Max.: 100 unit

Description

The RG Series of planetary gearboxes with reduced backlash allow high speed decreases with reduced dimensions and are used for applications that require high levels of precision during operation. Main Components • Housing in hardened and tempered steel • Bearings with ball roller • Input flanges in die cast aluminium • Gears in alloy or hardened steel • Synthetic oil for lifetime lubrication of the gears Plus • High efficiency • High precision • Extended lifetime with excellent reliability • Easy installation and maintenance • Weight reduced • Silent running Special Solutions For Application Sectors • Silicone, Viton or special seals for high/low temperatures and food & beverage sector • Anodization for chemical and ship-building/marine sectors • Special lubricants for high/low temperatures and food & beverage sector • Non-standard breather plugs for high/low temperatures • Special paint finishes for chemical, ship-building/marine and food & beverage sector For NEMA and servo motors • Flanges and couplings for servomotors • Output holes in inches • Input couplings for NEMA motors

VIDEO

Catalogs

RG
RG
2 Pages
RG
RG
28 Pages
