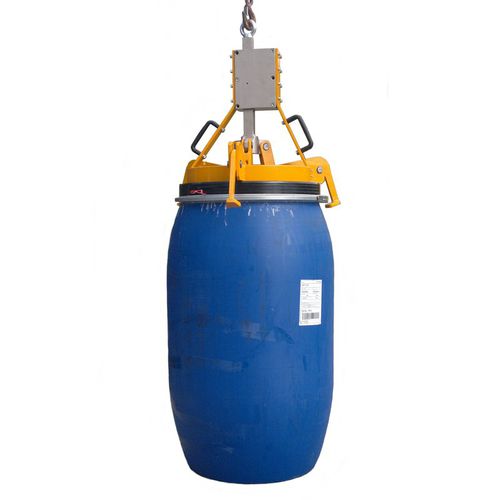

Drum lifting clamp BS101 AF

verticalautomatic

AUTOMATIC clamp for drums to be installed on the rope/chain of a hoist For metal and plastic drums • Available in both stainless steel and painted steel. • Tailored solutions - Custom design for your needs. • Reliable experience - Over 30 years of successes. • ATEX certification - Possibility to ATEX conversion. • Customer support - Immediate answers and solutions. Automatic clamp for handling metal and plastic drums to be installed on the chain of a hoist. If you need to handle metal or plastic drums (full or empty, open or closed) by means of a bridge crane, a bogie crane or a hoist, BS101 AF is the right equipment; if it is equipped with the hook for transport BS99 you can also use it with the forks of the forklift. It is made up in highly resistant carbon steel for a safe and fast gripping. The hooking and release are automatic without the need for the operator's presence close to the drum. Technical specifications Model - BS101 AF Application - Hoist Drum clamping - At the top edge No. of drums moved - 1 Capacity - 500 kg Weight - 65 kg Grip - Mechanical (automatic) Warranty (years) - 3
