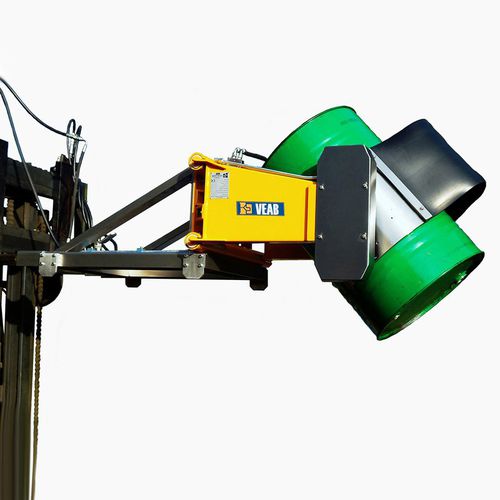

Hydraulic tipping station BS89 DVI
drumfor forklift trucks

hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
hydraulic tipping station
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Applications
drum
Other characteristics
for forklift trucks

Description

Frontal hydraulic drum tilter to be installed on the forks of the forklift to rotate all types of drums. The BS89 DVI tilter has been designed to rotate drums of different diameters and types (iron, plastic, cardboard). The drum is wound by 400 mm high gripping jaws completely covered with interchangeable rubber. The clamping jaws are hydraulically driven by a pair of cylinders, the hydraulic rotation is frontal by 360°. Hydraulic actuation of the clamping/release and rotation offers important advantages: first of all it allows the drums to be moved and rotated without the operator having to leave the forklift; secondly, thanks to the maximum pressure valve, the drums can always be tightened with the correct clamping pressure (neither too weak nor too high) and last but not least. From a safety point of view, the block valves located on the cylinders keep the drums tight even in the event of hydraulic pipes being cut. The tilter is simply and safely secured to the forks by means of the clamping bracket.
