Electric tipping station BS91 DFE

electric tipping station
electric tipping station
electric tipping station
electric tipping station
Add to favorites
Compare this product

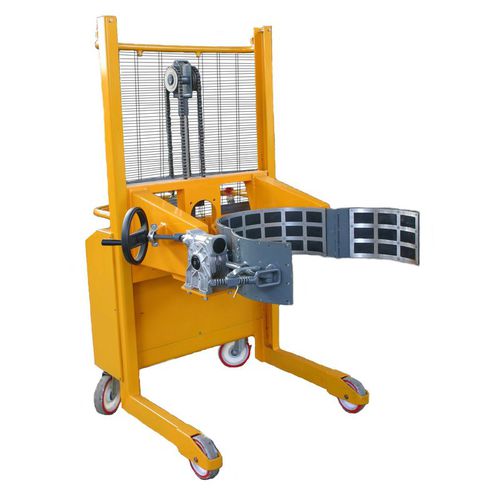

BS91 DFE is an electric drum lift tilter trolley equipped with a manual frontal drum tilter capable of handling standard metal oil drums; the lifting and lowering by means of an electric motor (push-button operated) allows significant emptying heights to be reached in a short time and without any effort on the part of the operator. The electric motor, the armoured battery (12 V 130 A/h) and the high frequency battery charger are placed in a special compartment, which has IP55 protection degree against the penetration of dust and water splashes. The drum is wound by the 230 mm high clamping band, fully coated with interchangeable rubber and secured with a commercial clamping handle produced by VEAB; continuous 360° frontal rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the drums at height. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the drum stable in the emptying position once rotated.
