Electric tipping station BS91 DVLE

electric tipping station
electric tipping station
Add to favorites
Compare this product

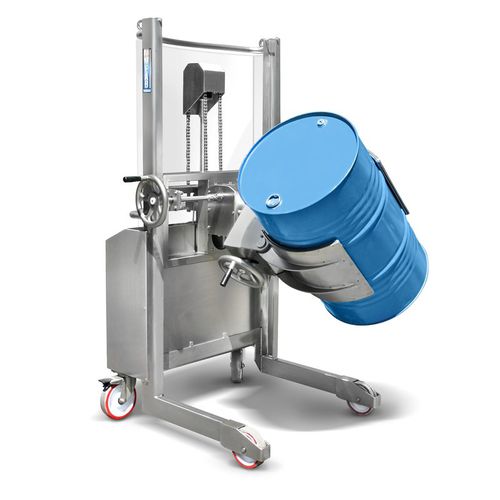

BS91 DVLE is an electric drum lift tilter trolley equipped with a manual lateral drum tilter capable of handling a wide variety of drums; the lifting and lowering by means of an electric motor (push-button operated) allows significant emptying heights to be reached in a short time and without any effort on the part of the operator. The electric motor, the armoured battery (12 V 130 A/h) and the high frequency battery charger are placed in a special compartment, which has IP55 protection degree against the penetration of dust and water splashes. The drum is gripped by the 400 mm high clamping jaws, completely covered with interchangeable rubber and locked with a sturdy clamping handwheel; continuous 360° lateral rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the drums at height. With the help of appropriate accessories we are also able to handle drums that are not cylindrical or objects with special shapes. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the drum stable in the emptying position once rotated.
