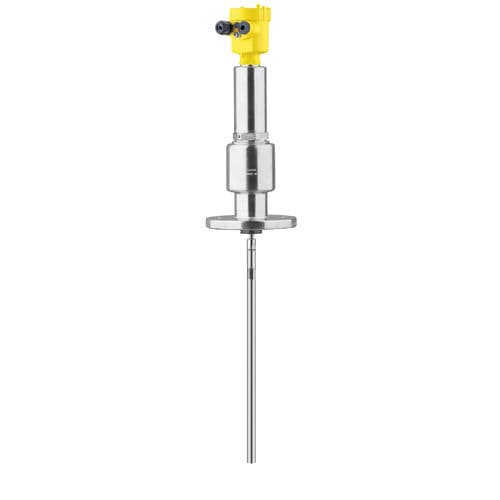

TDR-guided wave radar level sensor VEGAFLEX 86
for liquidsModbusHART

TDR-guided wave radar level sensor
TDR-guided wave radar level sensor
TDR-guided wave radar level sensor
Add to favorites
Compare this product


Characteristics

Technology
TDR-guided wave radar
Medium
for liquids
Interface
Modbus, HART, PROFIBUS, 4-20 mA, 2-wire
Applications
for storage tanks
Other characteristics
flange-mount, stainless steel, IP66, economical, maintenance-free, IP67, IP68
Level range

Min.: 0 m (0'00")

Max.: 75 m (246'00")

Process pressure

Min.: 0 bar (0 psi)

Max.: 400 bar (5,801.51 psi)

Process temperature

Min.: -196 °C (-321 °F)

Max.: 450 °C (842 °F)

Description

TDR sensor for continuous level and interface measurement of liquids For the most extreme process conditions Application area Cable, rod or coaxial sensor. Its robust, mechanical design and the second process seal, the Second Line of Defense, protect the sensor for demanding measurement tasks. Process temperature: -196 ... 450° C; process temperature: -1 … 400 bar The VEGAFLEX 86 level sensor measures maintenance-free all liquids under extreme pressure and temperature conditions. Even in applications with buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. In saturated steam applications, a special reference probe ensures a density-independent measurement. The VEGAFLEX 86 offers an economical level and interface measurement for your application. Your benefit The guided adjustment enables a simple, time-saving and reliable setup Shortenable probes offer a simple standardisation and highest flexibility in the planning Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability Materials, wetted parts 316L Alloy C22 (2.4602) 316 Threaded connection ≥ G¾, ≥ ¾ NPT Flange connection ≥ DN25, ≥ 1" Seal material FFKM graphit and ceramic Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Profibus PA Foundation Fieldbus 4 … 20 mA/HART - two-wire Modbus 4 … 20 mA/HART - four-wire Ambient temperature -40 ... 80 °C
