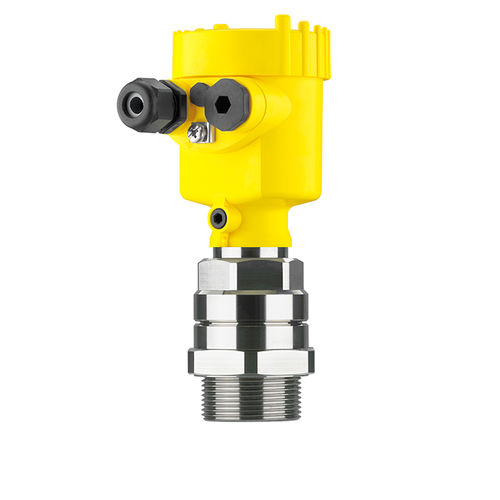

Microwave level switch VEGAMIP R61

for liquidsfor bulk materialsfor chemicals

Microwave receiver for level detection of bulk solids and liquids Application area The simple and robust measuring system is virtually independent of the process and the chemical and physical properties of the product. Also suitable for detection of objects, such as vehicles or ships, or detection of solid materials on conveyor belts. The VEGAMIP R61 is the receiving unit of the microwave emitter VEGAMIP T61 for level detection of bulk solids and liquids. Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as of liquids in tubes and vessels. The non-contact measuring principle has no direct contact to the medium and guarantees wear and maintenance-free permanent operation. Your benefit Simple adjustment saves time and costs for setup Reliable measurement even with very abrasive products Reliable measurement even with changing product features Measuring range - Distance 100 m Process temperature -40 ... 80 °C Process pressure -1 ... 4 bar Version hygienically encapsulated horn antenna for separate horn antenna with horn antenna ø 40 mm with horn antenna ø 48 mm with horn antenna ø 75 mm with horn antenna ø 95 mm with plastic horn antenna ø 80 mm Horn antenna ø 1½" with encapsulated horn antenna Materials, wetted parts PTFE 316L 1.4848 PP Threaded connection ≥ G½, ≥ ½ NPT Flange connection ≥ DN50, ≥ 2" Hygenic fittings Slotted nut ≥ 2", DN50 - DIN 11851 Varivent ≥ DN25 DRD connection ø 65 mm for NEUMO BioControl D50 PN16 / 316L Seal material FKM FFKM Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67
