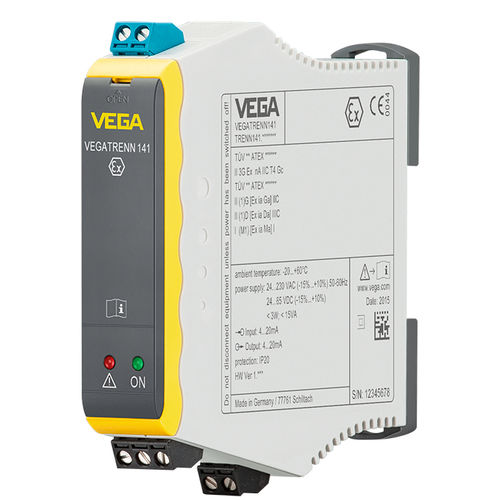

Galvanic isolator VEGATRENN 141

galvanic isolator
galvanic isolator
galvanic isolator
Add to favorites
Compare this product


galvanic, signal
Other characteristics
ATEX, 2-channel


Single channel separator for 4 … 20 m/HART sensors Single channel , active Application area The single channel VEGATRENN 141 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 141 is used in all industries als with Ex applications. The VEGATRENN 141 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings. Your benefit Simple installation though carrier rail mounting as well as detachable, coded terminals Universally applicable Ex separators for all 4 ... 20 mA/HART sensors Complete HART permeability enables free access to sensor settings Technical specifications Protection rating IP20 Input 1 x 4 … 20 mA/HART sensor input Output 1 x 4 … 20 mA Ambient temperature -20 ... 60 °C Scope ATEX / Europe IEC / worldwide SIL qualification SIL2 Indication LED
