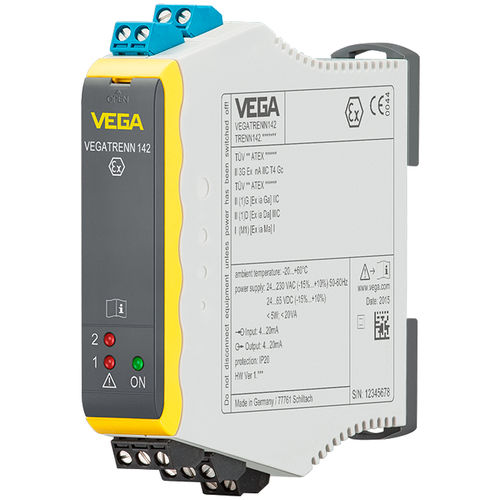

Galvanic isolator VEGATRENN 142
signalATEX2-channel

galvanic isolator
galvanic isolator
galvanic isolator
Add to favorites
Compare this product


Characteristics

Type
galvanic, signal
Other characteristics
ATEX, 2-channel

Description

Separator for 4 … 20 mA/HART sensors Double channel , active Application area The double channel VEGATRENN 142 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 142 is used in all industries als with Ex applications. The VEGATRENN 142 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings. Your benefit Simple installation though carrier rail mounting as well as detachable, coded terminals Universally applicable Ex separators for all 4 ... 20 mA/HART sensors Complete HART permeability enables free access to sensor settings Technical specifications Protection rating IP20 Input 2 x 4 … 20 mA sensor input Output 2 x 4 ... 20 mA Ambient temperature -20 ... 60 °C Approvals Scope ATEX / Europe IEC / worldwide SIL qualification SIL2 Display & adjustment Indication LED
