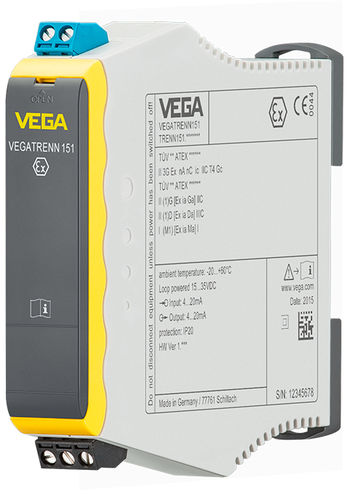

Galvanic isolator VEGATRENN 151
ATEX

galvanic isolator
galvanic isolator
galvanic isolator
Add to favorites
Compare this product


Characteristics

Type
galvanic
Other characteristics
ATEX

Description

Separator for 4 … 20 mA sensors Single channel , passive Application area The single channel VEGATRENN 151 is used for galvanic separation of intrinsically safe applications as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separator is ideal in conjunction with controllers without own Ex approval. The VEGATRENN 151 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings. Your benefit Simple installation because no additional voltage supple required Simple installation though carrier rail mounting as well as detachable, coded terminals Reliable separation of intrinsically safe and non-intrinsically safe circuits Technical specifications Protection rating IP20 Input 1 x 4 … 20 mA/HART sensor input Output 1 x 4 … 20 mA Ambient temperature -20 ... 60 °C Approvals Scope ATEX / Europe SIL qualification SIL2
