Mass flow sensor WEIGHTRAC 31
non-contactradiometricbulk products

mass flow sensor
mass flow sensor
Add to favorites
Compare this product


Characteristics

Technology
mass, non-contact, radiometric
Applications
bulk products
Other characteristics
precision

Description

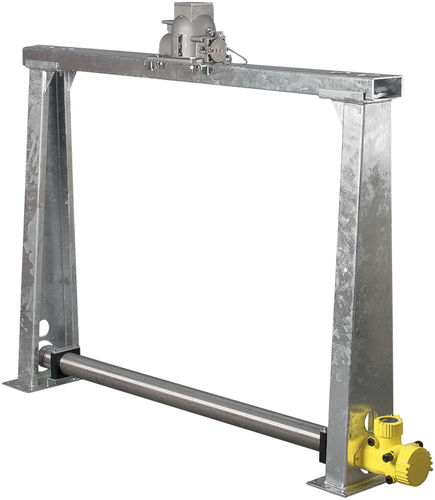

Radiometric sensor for mass flow determination Throughput measurement Application area The frame construction offers a simple mounting option for a retrofit on a conveyor belt, to enable non-contact throughput measurement of bulk solids. The WEIGHTRAC 31 is a radiation-based sensor for precise flow measurement of bulk solids. It is ideal for mass flow determination on conveyor belts and in conveyor spirals in all industries. Due to its frame construction, the WEIGHTRAC 31 can be simply retrofitted to the conveyor belt. Your benefit Exact determination of the delivery volume through simple setup Wear-free, because non-contact measurement WEIGHTRAC 31 is a mass flow measurement for precise bulk solids detection on conveyor belts and in screw conveyors. PVT is used as scintillation material. Process temperature -40 ... 60 °C Accuracy 1 % Materials, wetted parts No wetted material Seal material no media contact Housing material Aluminium Stainless steel (precision casting) Protection rating IP66/IP67 Output Profibus PA Foundation Fieldbus 4 … 20 mA/HART - four-wire Ambient temperature -40 ... 60 °C Scope ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil Explosion protection Intrinsic safety Ex ia Pressure-tight encapsulation Ex d Protection through housing St Ex Adjustment PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM) Indication Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
