Orbital grinding machine ORBIT 64

for valvessafety valvelapping

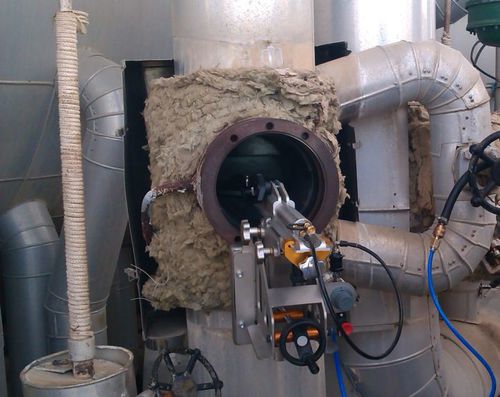

The Ventil ORBIT 64 is a robust, but light weight grinding and lapping machine for ‘in-situ’ or ‘in-shop’ repair of damaged valve seats. The unique set up and construction makes the versatile ORBIT 64 suitable for all sorts of ‘vertical’ seats found in Gate, Parallel slide, Check Valves and ‘horizontal’ mounted seats of Globe and Safety valves, in the range 6 – 64”. The unique orbital, – mechanical – gear driven grinding heads results in a very high material removal rate, perfect cross hatch machining pattern with extreme good flatness accuracy. The ORBIT 64 is available with pneumatic drive motor or 110/220 VAC drive motor.
