Work station cart VersaCart

steelplatformmultipurpose

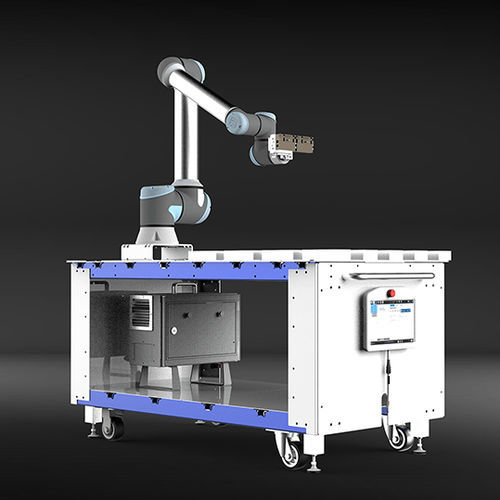

The VersaCart is sized to provide a generous infeed area yet is compact enough to fit in even the most crowded CNC spaces. Available in the 1300 size, optimized for 1300mm reach robots, and the 1700 size, for 1700mm robots. The VersaCart is CNC laser cut and formed from powder-coated steel for precision, durability, and long life. The Visual Infeed System allows for fast easy part alignment by the operator for pickup by the robot. The lower shelf provides storage for the robot controller and may also be used to store MultiGrip Jaws. The VersaCart is mounted on a heavy-duty caster for portability and includes leveling feet to secure the VersaCart into position in front of the CNC. Visual Infeed The VersaCart Visual Infeed System is a laser-cut stainless steel plate that bolts to the top of the VersaCart. A 2″ by 2″ alignment grid makes it easy for an operator to quickly and accurately align material to be processed by the robot. The grid pattern works well for both rectangular and round shapes. For non-uniform shapes, the Visual Infeed System can be removed in just a few minutes and replaced with custom laser-cut part locators. Features Optimized for 1300mm reach robots Almost 1800 square inches of infeed capacity Options for infeed top Custom Infeed Ready Kit Standard SS Visual Infeed System Oversized SS Visual Infeed System Casters allow for portability between CNC machines Stores and protects robot controller Secures teach pendant for convient access Leveling feet secure VersaCart in place for processing Designed for easy normal
