Cable rewinder-winder CDV100-M

motorizedmobile

Product description

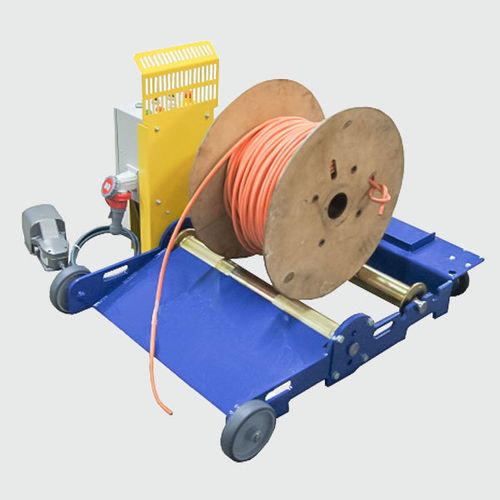

The Vetter CDV100-M is a motorized pay-off/rewind unit designed for controlled winding and unwinding of cables and similar materials. The unit is mounted on a mobile platform with four wheels, two of which are braked swivel castors, providing stability and easy relocation. Drum support rollers are driven to ensure even rotation. Speed is steplessly adjustable via a potentiometer and operation is performed using a footswitch, enabling safe hands-free handling in industrial environments.

Technical details

• Brand: Vetter
• Model: CDV100-M
• Product ID: 320690
• Product category ID: 347
• Load capacity: 500 kg
• Max drum width: 650 mm
• Drum diameter: 300–1000 mm
• Weight: 120 kg
• Winding speed: 6–25 m/min (≈5–30 rpm)
• Drive: 0.75 kW motor
• Supply voltage: 230 V, 50–60 Hz
• Mains connector: 1×16 A
• Speed control: stepless potentiometer
• Operation: footswitch
• Mobility: platform on 4 wheels (2 braked swivel castors)

Drawings / datasheets
No documents available. Source page: https://portal.vetter-kabel.de/en/products/320690?productCategory=347

Key features

• Compact mobile platform for on-site cable handling
• Even rotation via roller-driven drum support
• Stepless speed adjustment for precise winding
• Footswitch operation for hands-free control
• Suitable for drums Ø 300–1000 mm and widths up to 650 mm
