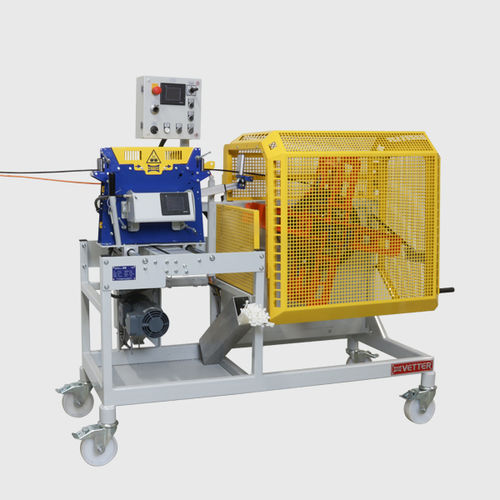

Cable winding machine DE 30SF

wirefor fiber optic coilautomatic

This small but effective electrical ring coiler are primarily used by electrical wholesalers and industry. It is intended for the frequent and professional winding of smaller cables, wires or lines from delivery drums onto rings. Using a spool as an accessory, lengths of cable can also be rewound from larger drums to smaller ones. This electrical cable and ring coiling machine DE 30 for cable diameters up to 30 mm is equipped with the latest technique and also sensitive fibre optic cables can be spooled very well. The frequency controlled drives enable gentle, automated start-up and braking to protect the cable and for highly accurate measurements. This machine can be equipped with an automatic cable layering feature that increases performance even further. Suitable for coiling and spooling on smaller drums up to dia. 800 mm, of width to 340 mm. DE 30 therefore is a machine for two applications: spooling of small electronic or telecommunication cables with high speed and spooling of bigger cables with reduced speed. For sensitive cables there is a possibility to limit the pulling force. Simple and easy understandable operation through touch-screen with additional mechanical push-button. Potentiometer mounted on a pivoting operator panel. Type DE 30SF with electronic automatic cable traversing provides an even alignment of the cable on the drum. Adjustment of the reversal points is done by push-buttons and input of the cable diameter by a control dial. Corrections of both parameters during the winding procedure are possible through laser pointer. On type DE 30 F cable traversing is done manually by the operator.
