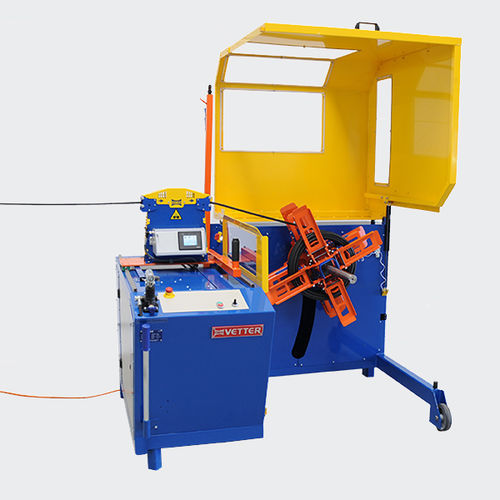

Cable coiler DTR 80F

for wirecoilmotorized

Product description
The Vetter DTR 80F is a cable drum and coiling machine designed for rewinding, winding and measuring cables and wires. It is configured for winding from drum to winding heads and can be quickly modified to operate drum-to-drum for drums Ø 400-1000 mm (standard range Ø 400-800 mm).

Applications and features

• Cable drum and coiling machine for cables and wires
• Suitable for cable distributors, cable stores and industrial plants
• Winding and length measuring from drum to drum or to coil
• Stable steel construction for continuous operation
• Drum lifting by hydraulic hand pump for safe handling
• Drum shaft for bores from 50 mm with manually clamped cones
• Cable traversing with ball bearings; compatible with length measuring units MZ and M 20-40 / S; manual traverse movement
• Electronic preset counter included as standard
• Safety cage with automatic switch-off included
• Easy displacement on large wheels for on-site mobility
• Additional accessories available (see product accessories)

Additional information
Code: 323400

Drawings / data sheets
No documents available

Technical specifications

• L/W/H mm: 1700/1800/2000
• Motor power / Voltage: 1.5 kW / 230 V
• Drum width mm: MAX. 620
• Drum Ø mm: 400-800 (upgradable to 1000 mm)
• Cable Ø mm: 3-35
• Weight: 455 kg
