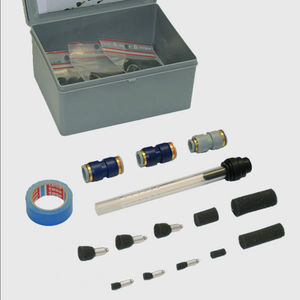

Calibration kit SKS 04

Product description: Both single tubes and multi-ducts can be calibrated in buried and in-protection-duct versions. This calibration unit raises the verifiability of mini cable blowability by allowing the quality of subduct installation to be checked in advance.

Functions and notes:

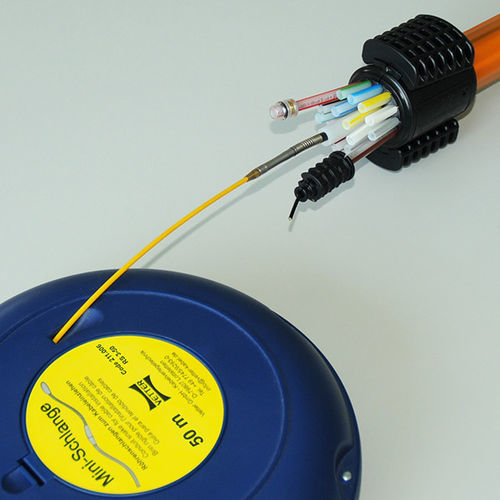

• Multi-ducts can be located over short distances using the central emergency duct 12x2.0 or 14x2.0.
• Compatible micro transmitters: SKS 06 (max diameter 6.4 mm) and SKS 07 (max diameter 7.5 mm); these are screwed onto the M5 external thread of the mini-rod.
• Insertion length depends on local conditions and is limited by the length of the mini-rod to a maximum of 50 m.
• Use of lubricant facilitates insertion and withdrawal.
• Maximum locating depth in soil: 2 m.
• The mini-rod can be used in yellow and red (with Cu conductors).

Product code: 231933

Drawings / data sheets: No documents available

Characteristics / specifications:

• Operating time: 8 h
• Locating depth: 2 m
• Length (mm): 100
• Subduct I-Ø (mm): 6
• Weight: 0.16 kg
