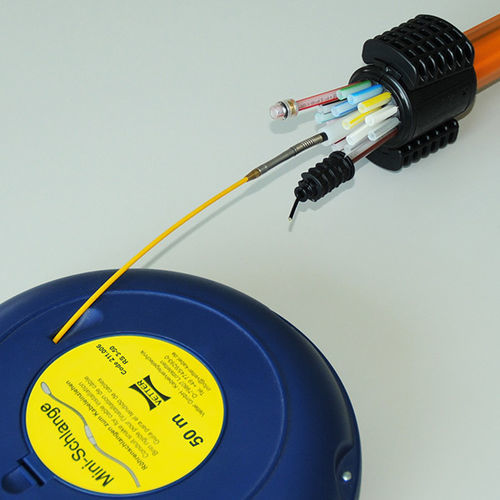

Calibration kit SKS 07

Product overview
Both single ducts and multi-ducts can be calibrated for buried and conduit-protected installations. This calibration unit raises the blow-in capability of mini cables by enabling pre-verification of subduct installation quality.

Compatibility and application
Multi-ducts can be traced via the central emergency duct 12x2.0 or 14x2.0 over short distances. Micro transmitters SKS 06 (max Ø 6.4 mm) and SKS 07 (max Ø 7.5 mm) are screwed onto the M5 external thread of the mini-snake. Insertion length depends on local conditions and is limited to a maximum of 50 m by the mini-snake length. Use of lubricant facilitates insertion and retrieval. Locating depth in soil: max. 2 m. The mini-snake is available in yellow and red (with Cu conductors).

Technical details (values shown on the page)
Operating time: 8 h
Locating depth: 5 m
Length (mm): 115
Subduct I-Ø (mm): 9.8–16
Weight: 0.01 kg

Notes from product description
Locating depth (in text): max. 2 m in soil
Insertion length: up to 50 m (limited by mini-snake length)
Compatible micro transmitters: SKS 06 (max Ø 6.4 mm), SKS 07 (max Ø 7.5 mm)
Thread: M5 external thread
Color options: yellow and red (with Cu conductors)
Lubricant: recommended for easier insertion and retrieval

Characteristics / Specifications

• Operating time: 8 hours
• Locating depth: 5 m (displayed) / max. 2 m in soil (text)
• Length: 115 mm
• Subduct I-Ø: 9.8–16 mm
• Weight: 0.01 kg
• Compatible micro transmitters: SKS 06 (max Ø 6.4 mm), SKS 07 (max Ø 7.5 mm)
• Thread: M5 external thread
• Maximum insertion length: up to 50 m (limited by mini-snake length)
• Color variants: yellow and red (with copper conductors)
• Lubricant recommended
