Air blower EZ 100+PLUS

side-channelsingle-stage230V / 50Hz

Product description
The Vetter EZ 100+PLUS rope-blowing device with integrated side channel is designed for professional use in cable network, road, tunnel and bridge installations. It enables rapid and simple blowing-in of pull cords and ropes into protective ducts with an inner diameter of 50–150 mm (2"–6") without the need for a compressor. The shuttle expels water, loose dirt and small debris while simultaneously calibrating the duct and laying the cord or rope in a single operation. The integrated side channel allows blowing of steel cables as well as pull cords. Ropes and cables up to 8 mm diameter can be removed from the unit without cutting, enabling repeated use of the same rope.

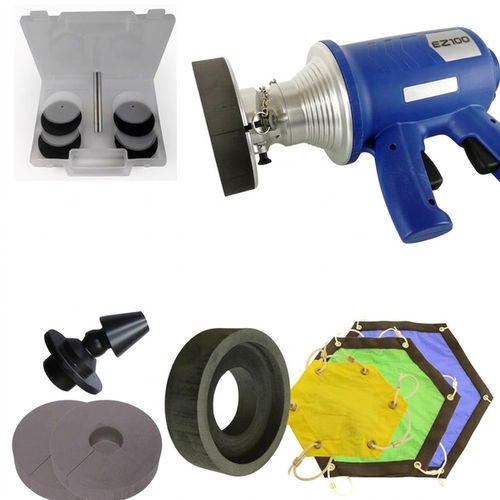

Case with PLUS equipment:

• Rope-blowing device with integrated 140 mm front section with side channel
• 1 brass rope guide 6 mm
• 2 spare foam rings with Ø 140 mm cut
• 5 shuttle complete sets Ø 50, 60, 72, 90, 130 mm
• 1 small parts box for shuttle assembly
• 1 adapter for small pipe diameters 25–50 mm
• 1 foam attachment Ø 170 mm
• 1 parachute size 30–60 mm
• 1 parachute size 60–100 mm
• 1 parachute size 100–150 mm
• 1 user manual

Drawings / Data sheets
No documents available

Characteristics / Technical specifications

• Brand: Vetter
• Product ID / Article code: 237200
• Product category ID: 358
• Dimensions (mm): 350 x 252
• Max. air throughput: 4 m³/min
• Rope Ø (mm): 1–8
• Voltage: 230 V / 50 Hz
• Plug: SCHUKO
• For duct I-Ø (mm): 50–150
• Weight: 15 kg
