Pneumatic cable blowing machine EZX 615
Add to favorites
Compare this product
Characteristics
- Other characteristics
- pneumatic
Description
Product overview
Kit contents
Accessories
Drawings / Datasheets
No documents available
Characteristics / Technical specifications
- Brand: Vetter
- Model: EZX 615
- Function: Base kit for blowing ropes or cables into ducts
- Suitable pipe inner diameters: 60–110 mm
- Rope / cable diameter: 1–8 mm
- Maximum operating pressure: 8 bar
- Compact transport case, expandable to accommodate additional inserts

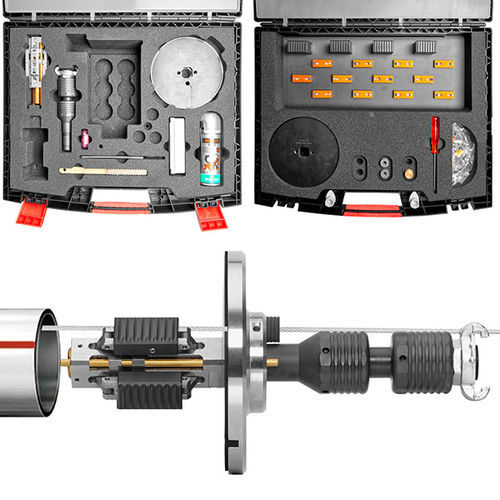

Kit contents
- EZ-SYSTEM-X base element
- 1 axial pressure head *
- 1 axial pressure disc (foam) *
- 1 axial pressure disc (rubber) *
- * for selected pipe A-Ø 60–110 mm
- 1 closed rope guide (for water expulsion)
- 1 split rope guide Ø 4 mm
- 4 clamping jaws — for pipe I-Ø 85–90 mm
- 1 plastic sleeve with spare screws for clamping jaws (range I-Ø 60–150 mm)
Accessories
- 1 maintenance spray
- 1 safety goggles
- 1 hearing protection
- 1 cleaning brush
- 1 hook wrench
- 1 hex key 2.5 mm
- 1 user manual
Drawings / Datasheets
No documents available
Characteristics / Technical specifications
- Dimensions: L 340 mm / Ø 70–170 mm
- Max. pressure: 8 bar
- Rope / cable Ø: 1–8 mm
- For pipe inner Ø: 60–110 mm
- Weight: 15 kg
