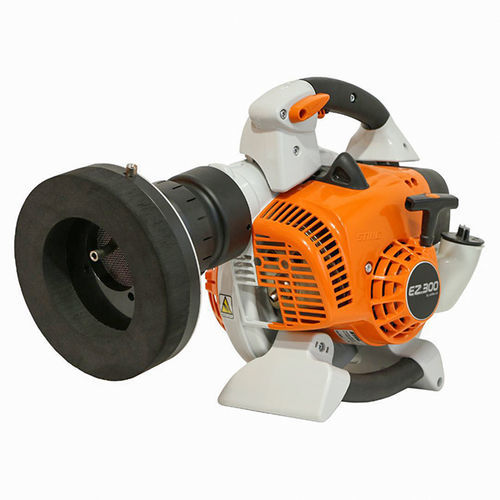

Air blower EZ 300

single-stagefor pipes

Product description:
The EZ 300 Pull Line Blower requires no electrical connection, as it features a powerful 2-stroke engine that can blow in or aspirate the pulling cord independently of power supply. It is used for laying cables in pipes and can eject water, small residues and impurities in the same operation.

Application:
Used in tunnel, underground/road and bridge construction, mountain railroads and cable car construction, for laying cables in pipes with an internal Ø 50 – 200 mm / 2” – 8”.

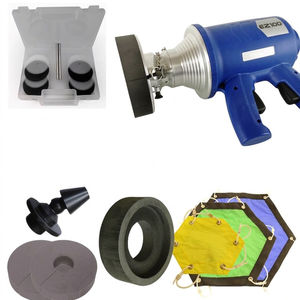

Case with STANDARD Equipment:

• EZ 300 Pull Line Blower
• 2 rolls of cable Pull Line Ø 1 mm (tensile strength approx. 24 kg, roll approx. 900 m)
• 5 shuttle complete set Ø 72, 90, 102, 130, 184 mm
• 1 box with assembly material for shuttles
• 1 box with parachutes: 1 for conduit I-Ø 60 – 100 mm; 1 for conduit I-Ø 100 – 150 mm
• 1 cone black 50 – 130 mm
• 1 head piece Ø 140 mm with pull line supply
• 1 head piece Ø 200 mm with pull line supply
• 1 suction unit
• 1 blowing unit
• 1 fuel can 0.5 liter (empty)
• 1 air hose 2 m
• 1 instruction manual

Drawings / data sheets:
No documents available

Technical details:

• Cord Ø: 1 mm
• Motor: 2-stroke motor
• For duct internal Ø: 50 - 200 mm
• Weight: 10 kg

Caractéristiques / Spécifications techniques:

• Cord diameter: 1 mm
• Engine type: 2-stroke (2-TAKT-MOTOR)
• Suitable duct internal diameter: 50–200 mm (2"–8")
• Weight: 10 kg
• Standard equipment: see list of included items (pull line rolls, shuttles, parachutes, head pieces, suction/blowing units, fuel can, air hose, manual)
