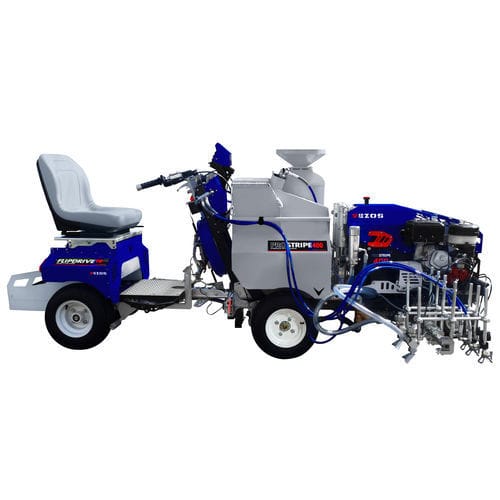

Road paint striping machine PROSTRIPE 400 SP LINEMATIC Pressurized Bead System-FLIPDRIVE

hydraulicself-propelled

Line Striper PROSTRIPE 400 SP LINEMATIC - Selective Steering - Pressurized Bead System - FLIPDRIVE SKU: 23.9941209 PROSTRIPE 400 hydraulic line striper fulfills every marking contractors needs in one unit, from a selective front wheel drive system, wide road view, self-propelled drive and fully automatic operation to assist all striping applications. PROSTRIPE 400 SP self-propelled line striper is offered with an innovative drive along seat attachment FLIPDRIVE TB, the seat can also be used as a stand on platform for extra visibility of the road ahead. SELF-PROPELLED LINE STRIPER √ SP system located on the striper √ 3-way drive system √ Motorcycle type motion control drive √ Operation speed 16 km/h SELECTIVE FRONT WHEEL STEERING √ 4-ply durable tire √ Center lock-in front wheel in both positions √ Position A: Precise steering from handle bar √ Position B: Free front caster wheel WIDE VIEW DESIGN √ Perfect view ahead at all times HYDRAULIC HYDREX 70 PISTON PUMP √ Up to 2-color set up √ Slow stroke 8.5 lit/min √ Built in filter PAINT HOPPER 150 lit √ Inclined slope bottom √ Single/ double color with separate pump inlets √ Clean-out trap GLASS BEAD TANK 75 kg √ Pressurized bead system √ Removable loading funnel AUTOMATIC GUN OPERATION √ Adjustable gun height √ Electro-pneumatic paint gun actuator √ 2-5 automatic paint & glass bead gun set-up √ Pre-5 paint gun set-up √ Two piston high volume air compressor LINEMATIC CONSOLE PS 400 √ Turning radius indicator √ 5 channel Skip-Line controller √ Gallon totalizers & counters √ Engine throttle, Hand brake, Kill switch, Pressure gauge and Gun actuator FLIPDRIVE LINE STRIPE SEAT √ Double ascent ride √ Tow behind attachment
