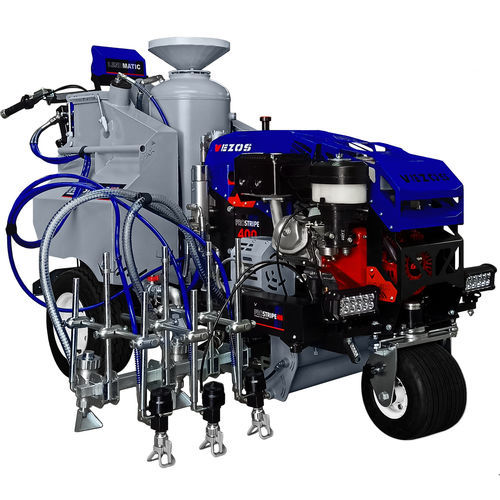

Hydraulic paint striping machine PROSTRIPE 400 SP LINEMATIC

self-propelledwalk-behind

Line Striper PROSTRIPE 400 SP LINEMATIC (Airport / Open Road Wheel Setup) 3 Paint Gun SKU: 23.9941214 VEZOS Airport/Open Road Wheel Setup is designed to tackle any terrain with ease, making it perfect for use at airports and on open road line marking applications. The Setup features oversized turf wheels that provide exceptional stability and traction, even on uneven surfaces. These wheels ensure maximum durability, while the front tire provides excellent stability and reduce ground pressure, making it ideal for use on soft surfaces like grass and dirt. SELF-PROPELLED LINE STRIPER √ SP system located directly on the striper √ 3-way drive/ ride system √ Motorcycle type motion control drive √ Operation speed 16 km/h SELECTIVE FRONT WHEEL STEERING √ 4-ply durable tire √ Center lock-in front wheel in both positions √ Position A: Precise steering from handle bar with automotive type steel bar √ Position B: Free front caster wheel for increased maneuverability HYDRAULIC HYDREX 70 PISTON PUMP √ Up to 2-color set up √ Slow stroke 8.5 lit/min √ Built in filter PAINT HOPPER 150 lit √ Inclined slope bottom √ Single or double color with separate pump inlets √ Clean-out trap GLASS BEAD TANK 75 kg √ Pressurized bead system √ Removable loading funnel AUTOMATIC GUN OPERATION √ Adjustable gun height √ Electro-pneumatic paint gun actuator √ 2-5 automatic paint & glass bead gun set-up √ Pre-5 paint gun set-up √ Stencil kit √ Two piston high volume air compressor LINEMATIC CONSOLE PS 400 √ Turning radius indicator √ 5 channel Skip-Line controller √ Gallon totalizers & counters √ Engine throttle, Hand brake, Kill switch, Pressure gauge and Gun actuator
