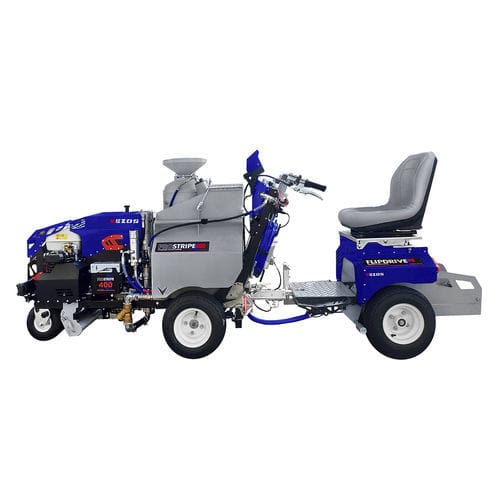

Hydraulic paint striping machine PROSTRIPE 400 DC + FLIPDRIVE

self-propelledautomatic

Self Propelled Line Striper PROSTRIPE 400 SP LINEMATIC DC - Selective Steering - PBS - FLIPDRIVE SKU: 23.9941213 Fully automatic, self-propelled line striper with a dual selective steering option ideal for intersections, straight lines and wide curves that are difficult to achieve with a standard type striper. Instantly change the unit from a free caster front wheel to a precisely controlled steering drive method, complete with radius indicator system, double color HYDREX pumps and a 115 lit paint tank with dual suction hose inlets. SELF-PROPELLED LINE STRIPER √ SP system directly on the striper √ 3-way drive √ Motorcycle type motion control drive √ Operation speed 16 km/h SELECTIVE FRONT WHEEL STEERING √ 4-ply durable tire √ Center lock-in front wheel in both positions √ Position A: Precise steering from handle bar with automotive type steel bar √ Position B: Free front caster wheel for increased maneuverability WIDE VIEW DESIGN √ Perfect view ahead at all times HYDRAULIC HYDREX 70 PISTON PUMP √ Up to 2-color set up √ Slow stroke 8.5 lit/min √ Built in filter PAINT HOPPER 150 lit √ Inclined slope bottom √ Single or double color with separate pump inlets √ Clean-out trap GLASS BEAD TANK 75 kg √ Pressurized bead system √ Removable loading funnel AUTOMATIC GUN OPERATION √ Adjustable gun height √ Electro-pneumatic paint gun actuator √ 2-5 automatic paint & glass bead gun set-up √ Pre-5 paint gun set-up √ Stencil kit √ Two piston high volume air compressor LINEMATIC CONSOLE PS 400 √ Turning radius indicator √ 5 channel Skip-Line controller √ Gallon totalizers & counters √ Engine throttle, Hand brake, Kill switch, Pressure gauge and Gun actuator
