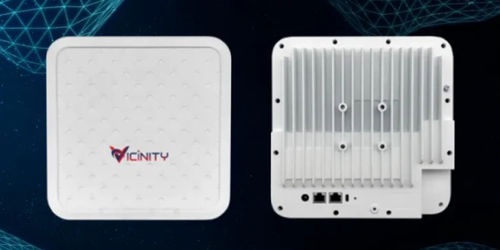

5G transceiver Bristol5G-014

4Glow-power

The Vicinity 4+5G Indoor Small Cell is designed with a focus on addressing several challenges related to indoor coverage, such as weak signals, blind spots, and communication interference. By deploying the small cell, network capacity is increased, allowing for better connectivity and improved user experience within indoor environments. Product Features All-in-one design for integrated small cell, easily deploy, low power consumption Support Multi-mode Synchronization Easy to deploy with system management and monitoring software High capacity support 128 active users per 5G cell, 64 active users per 4G cell Specifications Standard 3GPP release 15 Networking SA Duplexing Support Multiple TDD config, including DDDSUUDDDD/DDDSUUDSUU Frequency N78 Bandwidth 40/60/80/100MHz Modulation 256 QAM/64 QAM (DL/UL) MIMO 2T2R SCS 30KHz Output Power 24dBm±1.5dBm/Channel Max user 128 activated users and 128 connected users EVM 256 QAM <=3.5% NR Peak Data Rate DL 800Mbps, UL 400Mbps Item 4G Specification Duplexing FDD Frequency B3 Bandwidth 5/10/15/20MHz Output Power 21dBm±1.5dBm/Channel MIMO 2T2R Max user 64 activated users and 64 connected users NR Peak Data Rate DL 150Mbps, UL 75Mbps Item Others Synchronization GPS, IEEE1588V2 Power Supply DC 12V (AC adapter) IP Grade IP30 Dimension 240mm x 240mm x 65mm Working Temperature -10℃ ~ + 40℃ Humidity 5% ~ 95 % Weight <3 Kg Power Consumption <50W (Non PSE)
