IR photovoltaic detector PVA-3-d1.2-SMD-NW-115

InAsfor gas analysisuncooled

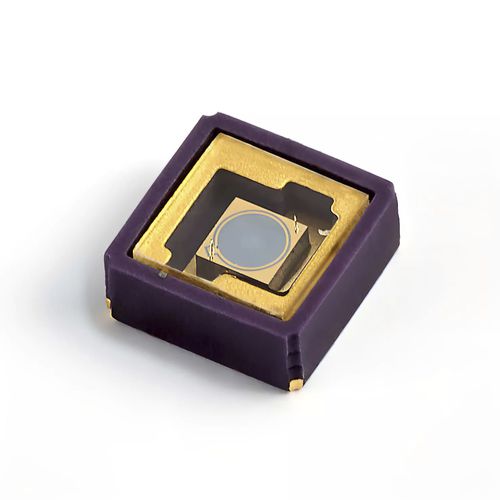

PVA-3-d1.2-SMD-NW-115 and PVA-3-d1.2-SMD-pAl2O3-115 are uncooled photovoltaic IR detector based on InAs heterostructure for optimal performance and stability. It enables the detection of radiation in the range from 1.3 μm to 3.6 μm. The diameter (dA) of its active element is 1.2 mm. The detector is available in the SMD package without a window or with a planar sapphire window (pAl2O3). Features Spectral range: 1.3 to 3.6 µm RoHS-compliant III-V material Large active area Front-side illuminated High ambient operating and storage temperature Compact, surface mount type ceramic package Compatible with lead-free solder reflow No minimum order quantity required Applications Gas detection, monitoring and analysis: H2O, HF, CH4, C2H2, C2H4, C2H6, NH3 Combustion process control Green energy Medical laser control
