IR photovoltaic detector PVMA-1TE-5-1x1-TO39-pSiAR-70

InAsSbexplosion detectionflame detection

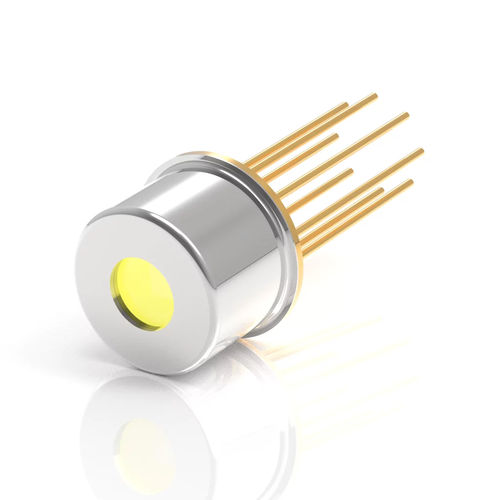

PVMA-1TE-5-1x1-TO39-pSiAR-70 is a one-stage thermoelectrically cooled photovoltaic multi-junction IR detector based on InAsSb heterostructure for optimal performance and stability. It enables the detection of radiation in the range from 1.7 μm to 5.5 μm. Its active area (A) is 1 mm × 1 mm. The detector is available in the TO39 package with a planar silicon anti-reflection coating window (pSiAR). Features Spectral range: 2.0 to 5.5 µm RoHS compliant III-V material Large active area Back-side illuminated One-stage thermoelectrically cooled Long term stability No minimum order quantity required Applications Contactless temperature measurement: railway transport, industrial and laboratory processes monitoring Flame and explosion detection Threat warning systems Heat-seeking, thermal signature detection Dentistry Gas detection, monitoring and analysis: CH4, C2H2, CH2O, HCl, NH3, SO2, C2H6, CO, CO2, NOx Breath analysis: C2H6, CH2O, NH3, NO, OCS Gas leak detection Combustion process control Non-destructive material testing
