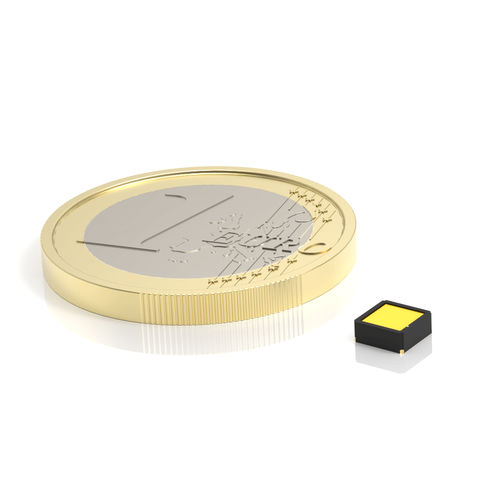

IR photovoltaic detector PVA-3-d1.2-SMD-BPF2920-B070-115

InAsfor gas analysisuncooled

PVA-3-d1.2-SMD-BPF2920-B070-115 is an uncooled photovoltaic IR detector based on InAs heterostructure for optimal performance and stability. The diameter (dA) of its active element is 1.2 mm. The detector is available in the SMD package with an optical filter (λcwl = 2920 nm, filter bandwidth = 70 nm). It can be used as a reference in gas detection systems. Features RoHS-compliant III-V material Large active area Front-side illuminated High ambient operating and storage temperature Compact, surface mount type ceramic package Compatible with lead-free solder reflow No minimum order quantity required Applications Gas detection, monitoring and analysis Combustion process control Green energy Medical laser control
