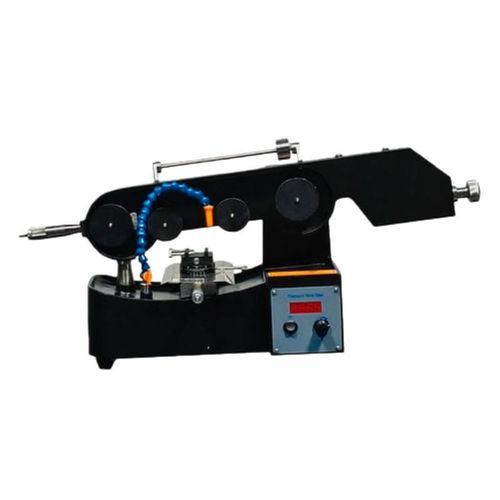

Diamond wire saw SGD 52

cut-offhorizontalfor graphite

SGD 52 is a Small Diamond Wire Saw which is a precision cutting tool designed for laboratories and research environments. It is optimized for cutting delicate and fragile materials, such as crystals and substrates, offering smooth and accurate results. Key Features: 1,Precision Cutting: Ideal for delicate and fragile materials, providing smooth and accurate cuts. 2,Adjustable Wire Tension: Allows for fine control over cutting performance. 3,Versatile Sample Stage: 360-degree rotation and 30-degree tilt for flexibility in positioning materials. 4,Minimal Material Loss: Ensures efficient cutting with reduced waste. Steps for Operating the Device: Wire Blade Installation: Loosen the tension handle to install the diamond wire blade around the driven, passive, and guiding wheels. Adjust the guiding wheels to match the cutting width and secure the wire blade by tightening the tension handle. Sample Preparation: Heat the sample and use wax or epoxy to bond it onto a graphite/aluminum plate. Secure the plate on the working stage using the vise or screws for stability. Cutting Setup: Ensure proper power connection (AC 110-230V). Attach coolant and drain pipes, making sure there are no leaks. Adjust the micrometer for precise sample positioning. Gravity Adjustment: Adjust the gravity using the right side handle and the top balance weight to control the cutting pressure. Position the guiding wheels according to the sample size, and set the stop point for automatic stopping after the cut. Cutting Operation: Turn on the machine and gradually increase the cutting speed. Lower the swing arm until the diamond wire blade makes contact with the sample, and cutting begins smoothly.
