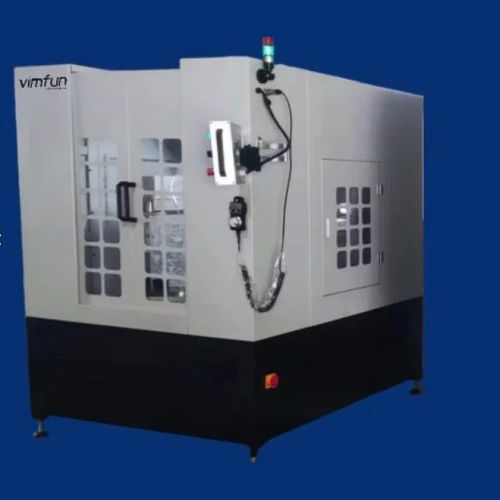

Diamond wire sawing machine SGI 20

verticalfor glassfor ceramics

Overview
SGI 20 is a compact, high-precision CNC endless diamond wire saw specifically designed for cutting small glass and ceramic components with complex contours. It supports both straight slicing and irregular 2D profiling, suitable for optical labs, filter manufacturers, and R&D institutions.

Key Features

• Dual cutting functions: straight slicing and contour shaping with DXF import for complex profiles.
• Compact vertical gantry structure providing mechanical rigidity; accommodates workpieces up to 200 × 200 × 200 mm.
• High-precision motion system: Y/Z travel 200 × 200 mm driven by servos with lead screws and guide rails; positioning ±0.01 mm; cutting accuracy ≤ 0.03 mm.
• DXF-compatible CNC software with built-in CAM for arcs, diagonals and straight-edge combinations.
• Endless electroplated diamond wire Ø 0.35–0.8 mm driven by high-speed servo; cutting loop length 1797 mm.
• Automated oil lubrication and water cooling with built-in tank and circulation.
• Safety features: wire-break detection, emergency stop, electrical protections and proximity sensors.

Applications

• Optical filter glass (narrowband filters, IR filters) and laser optics blanks.
• Technical ceramics (Al2O3, AlN, sintered ceramics for RF modules, power electronics, thermal substrates).
• Quartz plates, microlenses, small quartz windows, lens blanks and optical waveguide substrates.
• Custom sensor windows and substrates for MEMS, LiDAR and spectroscopy.

Cutting Demonstrations / Comparative Notes
The machine demonstrates smooth operation and clean edge quality in demonstrations, suitable for filter glass slicing and complex ceramic profiles. Compared with other technologies, CNC diamond wire saws such as the SGI 20 provide fully supported complex shapes via DXF import, high precision (≤ 0.03 mm), minimal thermal impact and excellent surface finish.

Parameters

• 1 | Maximum Workpiece Length (mm) | 200
• 2 | Maximum Workpiece Width (mm) | 200
• 3 | Maximum Workpiece Height (mm) | 200
• 4 | Worktable Y-Axis Travel (mm) | 200
• 5 | Worktable Z-Axis Travel (mm) | 220
• 6 | Maximum Diamond Wire Speed (m/s) | 33
• 7 | Minimum Feed Increment Y-Axis (mm) | 0.01
• 8 | Minimum Feed Increment Z-Axis (mm) | 0.01
• 9 | Repeat Positioning Accuracy Y-Axis (mm) | 0.01
• 10 | Repeat Positioning Accuracy Z-Axis (mm) | 0.01
• 11 | Total Power Consumption (kW) | 1.5
• 12 | Power Supply | 220V 50Hz
• 13 | Machine Size (mm) | 1044 × 950 × 1810
• 14 | Machine Weight (kg) | 600

Additional Technical Details

• Cutting accuracy: ≤ 0.03 mm; positioning accuracy ±0.01 mm.
• Diamond wire diameter: 0.35–0.8 mm; cutting loop length: 1797 mm.
• PLC and servo control with touchscreen interface; DXF import for 2D CAD-driven toolpaths.
• Automatic constant-tension system to prevent wire breakage and extend wire life.
• Micron-level feed control enabling ultra-thin slicing down to 0.1 mm.
• Fully enclosed protective design available (optional) to reduce contamination.

Technical specifications

• Model: SGI 20
• Maximum workpiece dimensions: 200 × 200 × 200 mm
• Worktable travel: Y 200 mm, Z 220 mm
• Wire speed: up to 33 m/s
• Wire diameter: Ø 0.35–0.8 mm
• Cutting loop length: 1797 mm
• Positioning & repeat accuracy: 0.01 mm (Y/Z)
• Cutting accuracy: ≤ 0.03 mm
• Minimum feed increment: 0.01 mm (Y/Z)
• Total power consumption: 1.5 kW; Power supply: 220V 50Hz
• Machine size: 1044 × 950 × 1810 mm; Weight: 600 kg
• Features: DXF-compatible CNC software, automatic lubrication, water cooling, wire break detection, emergency stop, automatic constant-tension system
