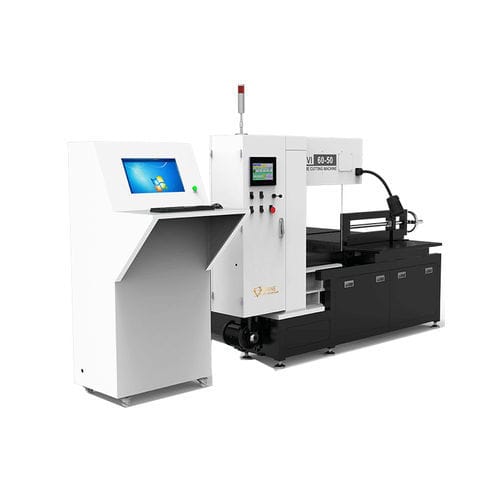

Diamond wire cutting machine SVS60-50

for composite materialsfor insulation panelCNC

Endless Diamond Wire Saw – Superior Alternative to Band Saw for Graphite
Model: SVS60-50 – High-Speed, Clean & Precise Cutting
The SVS60-50 Endless Diamond Wire Saw is an advanced cutting solution specifically designed to outperform traditional band saws in graphite cutting applications.
By using endless diamond wire technology, the SVS60-50 delivers cleaner cuts, smaller kerf width, and significantly better surface quality, with no risk of edge breakage. Why Replace Band Saw with SVS60-50?Compared with conventional band saws, graphite cutting often suffers from:

• Large kerf and high material loss
• Rough cutting surfaces
• Edge chipping or breakage
• Low cutting stability and dust issues

The SVS60-50 addresses these problems at their core, offering a modern, high-performance alternative.
Endless Diamond Wire Cutting Technology
The SVS60-50 utilizes an endless (closed-loop) diamond wire as the cutting tool.
This design allows the wire to move continuously in one direction, without reversing, ensuring smooth and stable cutting.
Key benefits include:

• Much smaller kerf width, maximizing material utilization
• Excellent surface finish, reducing or eliminating secondary processing
• No edge breakage, even on brittle materials
• Stable cutting force with minimal vibration

Ultra-High Cutting Speed – Up to 84 m/s
With a maximum cutting line speed of 84 m/s, the SVS60-50 delivers exceptional sharpness and cutting efficiency.
This enables:

• Faster cutting cycles
• Higher throughput compared with band saws
• Consistent surface quality even at high speeds

In both speed and surface quality, the SVS60-50 clearly outperforms alternative cutting methods.
Flexible Functionality – From Slicing to Contour Cutting
The SVS60-50 is designed with basic slicing capabilities as standard, making it ideal for straightforward cutting tasks.
When required, the machine can be upgraded to perform precision contour cutting, allowing users to:

• Expand processing capabilities
• Adapt to more complex shapes
• Upgrade functionality without replacing the entire machine

This flexibility ensures a future-proof investment.
Wide Material Compatibility
The SVS60-50 is widely used for cutting:

• Graphite blocks and components
• Green body ceramics
• Other materials with similar brittle characteristics

Its clean and stable cutting performance makes it suitable for both industrial production and material preparation applications.
Thanks to diamond wire cutting:

• Material waste is reduced due to smaller kerf
• Surface quality is significantly improved
• Edge integrity is preserved
• Overall processing cost is lowered

Upgrade Your Graphite Cutting Process
If you are looking for:

• A direct replacement for band saws
• Cleaner, faster, and more precise graphite cutting
• Smaller kerf and better surface finish
• A scalable solution with upgrade potential

The SVS60-50 Endless Diamond Wire Saw is the ideal choice. Contact us today to discuss your material type, cutting size, and future upgrade needs.
Cutting tests and customized configurations are available upon request.
