Brushless motor EC2232 series
DC6 V12 V

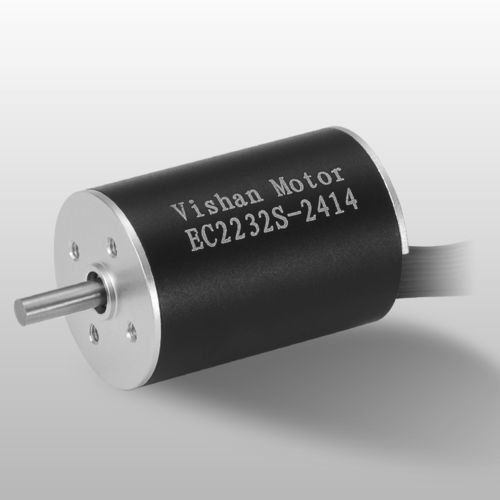

Brushless motor - EC2232 series - Vishan Motor - DC / 6 V / 12 V
Brushless motor - EC2232 series - Vishan Motor - DC / 6 V / 12 V
Brushless motor - EC2232 series - Vishan Motor - DC / 6 V / 12 V - image - 2
Add to favorites
Compare this product
Go to the Vishan Motor website for more information

Characteristics

Type
DC, brushless
Voltage
6 V, 24 V, 12 V, 18 V
Configuration
aluminium, slotless, hollow-shaft
Number of poles
single-pole
Applications
for pump, for medical equipment, for robotics, blower, for power tools
Other characteristics
high-efficiency, high-torque
Intensity

0.39 A, 0.52 A, 0.76 A, 1.5 A

Torque

0.006 Nm
(0.004425 ft.lb)

Rotational speed

9,023 rpm, 9,362 rpm, 9,585 rpm, 9,937 rpm
(56,693.181 rad.min-1, 58,823.1808 rad.min-1, 60,224.3312 rad.min-1, 62,436.0124 rad.min-1)

Diameter

22 mm
(0.87 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

With or without Hall sensor Performance: Customized in the continuous operating range Ball bearing: Preload Flange: Standard frange front&back/customize the frange Shaft: Length/Diameter/Cut face/double shaft/hollow shaft Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE Applications: Power Tools Pumps Robot Fan&Blower Medical Equipment
