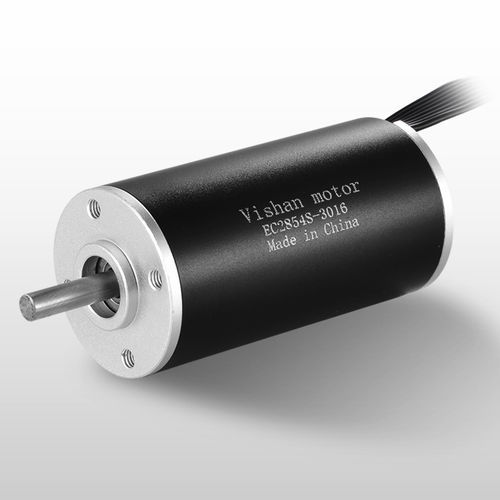

Brushless motor EC2854 series
DC24 V12 V

Brushless motor - EC2854 series - Vishan Motor - DC / 24 V / 12 V

Add to favorites

Compare this product

Go to the Vishan Motor website for more information

Characteristics

Type

brushless, DC

Voltage

24 V, 12 V, 48 V, 36 V

Configuration

aluminium, slotless, hollow-shaft

Number of poles

single-pole

Applications

for pump, for medical equipment, for robotics, blower, for power tools

Other characteristics

high-efficiency

Intensity

0.7 A, 0.91 A, 1.38 A, 2.62 A

Torque

0.035 Nm
(0.025815 ft.lb)

Rotational speed

6,646 rpm, 6,805 rpm, 6,891 rpm, 7,084 rpm
(41,758.0496 rad.min-1, 42,757.076 rad.min-1, 43,297.43 rad.min-1, 44,510.0847 rad.min-1)

Diameter

28 mm
(1.1 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products Configuration: With or without Hall sensor Performance: Customized in the continuous operating range Ball bearing: Preload Flange: Standard frange front&back/customize the frange Shaft: Length/Diameter/Cut face/double shaft/hollow shaft Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE
