Brushless motor EC3660 series
DC24 V12 V

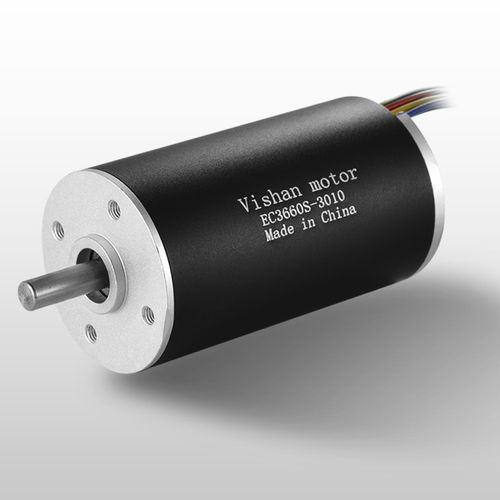

Brushless motor - EC3660 series - Vishan Motor - DC / 24 V / 12 V

Add to favorites

Compare this product

Go to the Vishan Motor website for more information

Characteristics

Type

brushless, DC

Voltage

24 V, 12 V, 48 V, 36 V

Configuration

aluminium, slotless, hollow-shaft

Number of poles

single-pole

Applications

for pump, for medical equipment, for robotics, blower, for power tools

Other characteristics

high-efficiency

Intensity

1.54 A, 2.03 A, 3.08 A, 6.09 A

Torque

0.082 Nm
(0.06048 ft.lb)

Rotational speed

6,766 rpm, 6,784 rpm, 6,794 rpm, 6,804 rpm
(42,512.0318 rad.min-1, 42,625.1291 rad.min-1, 42,687.961 rad.min-1, 42,750.7928 rad.min-1)

Diameter

36 mm
(1.42 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products Configuration: With or without Hall sensor Performance: Customized in the continuous operating range Ball bearing: Preload Flange: Standard frange front&back/customize the frange Shaft: Length/Diameter/Cut face/double shaft/hollow shaft Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE
