Hydrogen fuel cell

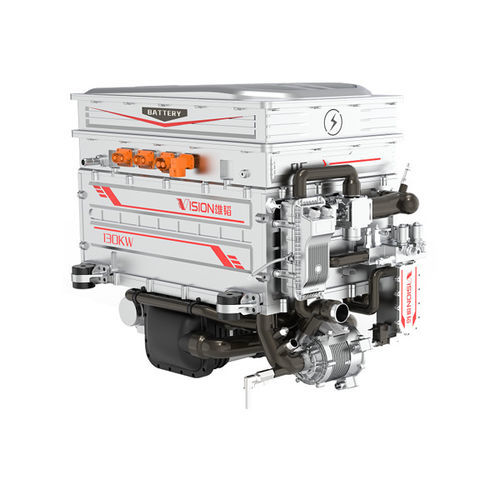

Hydrogen fuel cell - Vision Group
Hydrogen fuel cell - Vision Group
Add to favorites
Compare this product

Characteristics

Technology
hydrogen
Power

150 kW
(204 hp)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 60 °C
(140 °F)

Description

Overview
  • The Hydrogen‑Lithium Hybrid Fuel Cell Engine integrates an MEA‑based fuel cell stack with a 10C high‑rate lithium battery to deliver a compact, high‑efficiency hybrid power solution. The system reduces hydrogen consumption by up to 60% and raises average system efficiency to approximately 60%. It supports rapid cold starts down to -40°C while maintaining more than 85% of rated power under severe low‑temperature conditions.


Application Scenarios
  • Public transportation vehicles (buses, shuttles)
  • Logistics & transportation fleets (distribution trucks, vans)
  • Construction and off‑road machinery


Battery Quick Facts
  • Battery type: Fuel cell + 10C high‑rate lithium battery
  • Peak power capacity: 150 kW
  • Protection rating: IP67
  • Operating temperature range: -40°C to +60°C


Key Features
  • Highly efficient hybrid architecture: MEA (paper fuel cell stack) combined with a 10C high‑rate lithium battery and a proprietary hydrogen‑lithium hybrid control strategy for reduced hydrogen consumption and improved transient response.
  • Superior low‑temperature performance: supports ultra‑low temperature startup at -40°C; verified operation at -30°C with >85% power retention.
  • Advanced energy management: vehicle‑level control optimizes fuel cell and battery interplay to maintain stable operation within the high‑efficiency band.
  • High power density and compact design: reduced footprint and weight suitable for vehicle integration.
  • Modular, platform‑based architecture: scalable modules for different power requirements, simplifying maintenance and deployment.
  • Integrated hydrogen circuit: combined ejector and water separator reduces parasitic losses and improves system stability and cost‑effectiveness.
  • Robust environmental and safety design: IP67 ingress protection; shock resistance compliant with SAE‑J2380; redundant fault‑tolerant architecture with comprehensive detection and protection functions.


Industry Applications
  • Motive power solutions for vehicle platforms and mobile power systems


Technical Specifications
  • Commercial designation: Hydrogen‑Lithium Hybrid Fuel Cell Engine
  • Battery type: Fuel cell + 10C high‑rate lithium battery
  • Fuel cell technology: MEA‑based (paper fuel cell stack)
  • Peak power capacity: 150 kW
  • Average system efficiency: ≈60%
  • Hydrogen consumption reduction: up to 60% vs. baseline
  • Cold‑start capability: supports startup at -40°C
  • Power retention in cold: >85% of rated power at severe low temperatures (verified at -30°C)
  • Protection rating: IP67
  • Operating temperature range: -40°C to +60°C
  • Shock resistance: meets SAE‑J2380 standard
  • Design features: modular/platform architecture; integrated hydrogen circuit (ejector + water separator); redundant fault‑tolerant protection and comprehensive fault detection
