Hydrogen fuel cell

Overview

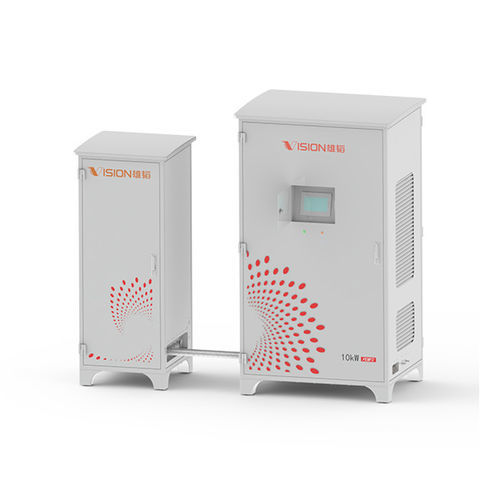

This modular combined heat and power (CHP) system integrates a hydrogen fuel module, battery expansion, HMI, DC/AC power modules and intelligent control. It is composed of two cabinets—a 10 kW power cabinet and a hot water cabinet—that can operate together or independently for backup power or domestic hot water supply. The solution supplies both electricity and heat with customizable AC/DC voltage outputs, suitable for residential and industrial applications.

Application Scenarios

• Residential: houses, villas
• Industrial: dormitories, canteens
• Off-grid areas: islands, remote locations
• Commercial: hotels, guesthouses, bathhouses

Battery Quick Facts

• Nominal Voltage: 48 V DC / 220 V AC
• Rated Power: 10 kW
• Design Life: 20,000 hours
• Communication Protocols: CAN 2.0 / Modbus
• Operating Temperature: -40°C to 50°C
• Overall Efficiency: ≥80% (LHV)

Key Features

• Power + Heat in One: delivers electricity and hot water in one integrated platform; system peak AC output up to 11 kW for transient heavy loads; reported overall efficiency values include ≥90% (LHV) in some configurations.
• Modular & Scalable: two-unit architecture (10 kW power cabinet + hot water cabinet) allows combined or separate operation; expandable to meet varying site requirements; 80 L hot water tank heats to 70°C with electric and rapid‑heat support.
• Reliable & Adaptive: generation efficiency ≥45% (LHV); quiet operation ≤65 dB; millisecond-level startup response; designed for wide ambient range (reported -40°C to 55°C in key feature notes).
• Smart & Safe: intelligent scheduling and system optimization via HMI; standard protections including electric‑heating control and leakage protection; communication interfaces for system integration.

Specifications

• Commercial name: Combined Heat and Power System
• Nominal voltage: 48 V DC / 220 V AC
• Rated power: 10 kW
• AC peak power: up to 11 kW
• Design life: 20,000 hours
• Generation efficiency: ≥45% (LHV)
• Overall system efficiency: reported values include ≥80% (LHV) and ≥90% (LHV)
• Communication protocols: CAN 2.0, Modbus
• Operating temperature ranges reported: -40°C to 50°C and -40°C to 55°C
• Noise level: ≤65 dB
• Startup response: millisecond-level
• Form factor: two cabinets (power cabinet + hot water cabinet), operable together or separately
• Hot water tank: 80 L, heats up to 70°C, supports electric and rapid‑heating
