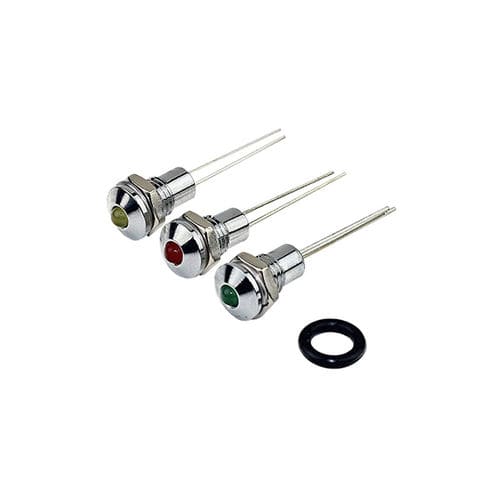

L63 Series 3mm LED
Robust Panel Mount Indicator
L63 Series offers a robust body with a round protruding LED position which provide up to a 50° viewing angle.
Available with red, green and yellow LEDs and offer benefits such as a high contrast, small size, long lamp life, low heat output.
LEDs achieve full brightness in microseconds and are ideal for use in applications that are subject to frequent onoff cycling.
Rugged vibration LED indicators are well suited for a number of applications, including industrial control panels, transportation dashboards, and aircraft instrumentation.
Oring accessory available for watertight applications.
Front panel mounting
Life expectancy of 100,000 hours
High brightness LEDs for daylight viewing
Protruding LED position
Low power consumptionThree colors available: Red, Green, Yellow
Body Material: Brass, chromium plated
Base Material: Phenolic (UL94 V-1)
Diffused T-1 (3mm) LED
Viewing angle: from 25o to 50o
Operating Voltage of 2 ~ 3.2 VDC
Compliant with RoHS and REACH requirements
