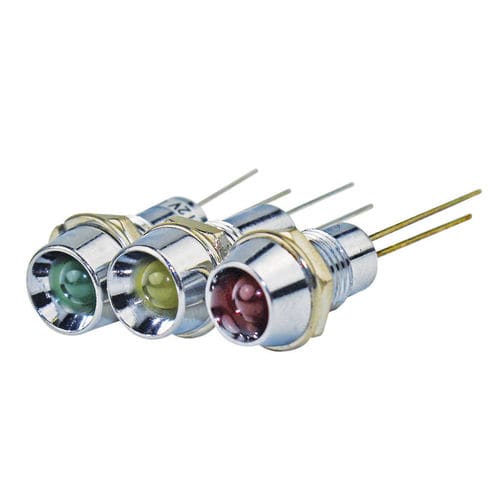

L65 Series 5mm LED
Panel Mount Indicator
L65 Series reflector is a robust panel mount indicator, where the reflector is designed to allow maximum light distribution with a 30° or 45° degree viewing angle.
Available with red, green and yellow LEDs, they offer benefits such as a recessed LED, maximum light distribution, long lamp life, low heat output
LEDs achieve full brightness in microseconds and are ideal for use in applications that are subject to frequent onoff cycling.
Rugged vibration LED indicators are well suited for a number of applications, including industrial control panels, transportation dashboards, and aircraft instrumentation.
Oring accessory available for watertight applications.
Available in a robust body and recessed LED position for front panel mounting
Mounting hole size: 0.315” (8.0mm)
Diffused 5mm LED (T1 3/4) offered in Red, Green or Yellow color
Protruding LED position
Low power consumptionThree colors available: Red, Green, Yellow
30 degree or 50 degree viewing angle
Straight leads termination
Body Material: Brass, chromium plated
Mounting hardware provided
Life Expectancy: 100,000 hours
Accessories: ORing Gasket to secure for water, dust and oil tight applications
Compliant with RoHS and REACH requirements
