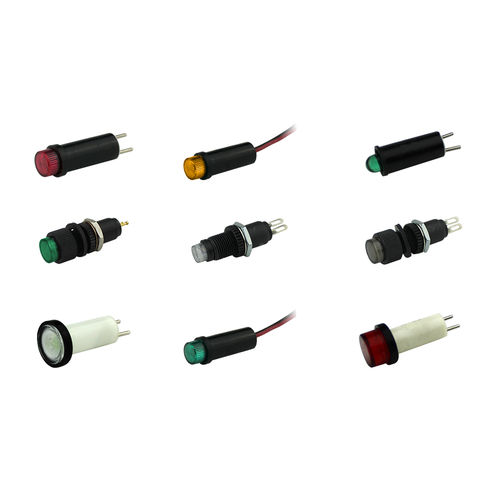

Steady indicator light 90 series

LEDpanel-mountwatertight

90 SERIES designed for quick installation in display panels and reduces your overall cost due to its superior construction, better performance, and a longer useful life Quick Tips The 90 Series LED panel mount indicators offer superior construction, longer life and watertight socket options for splashdown environments Cartridge, bi-pin, and wire lead termination options for use with spring retainer clip, socket holder or wiring plugs Available with a variety of LEDs including AlInGaP and InGaN technology for high brightness applications, bi-color and with integrated resistors Available in six single colors: red, green, white, blue, amber, orange and in one bi/color: red/green with or without lens Offered with a variety of lens options: cylindrical, flush, dome, wide cylindrical or wide flush all featured with fresnel pattern lens which provides excellent light focus and assures maximum light output Black bezel offering to enhance LED contrast Spring retainer clip and washer (included) secure uniform placement of the indicator to the panel and is ideal for high vibration environments Watertight socket options for splashdown environments For use with spring retainer clip (included), socket holder (PS90 or PS90T – sold separately) or wiring plug (SH90 or CSH90 – sold separately) Designed for quick installation in display panels and reduces overall cost due to less-frequent replacements 90 Series Prominent LED panel mount indicator Panel hole diameter: 0.290” (7.37mm) Built-in LED can be used with DC circuits (2 to 60 VDC) or 120VAC circuits Terminal options: Cartridge, Bi-Pin and Wire Leads (6” 24 AWG wire leads)
