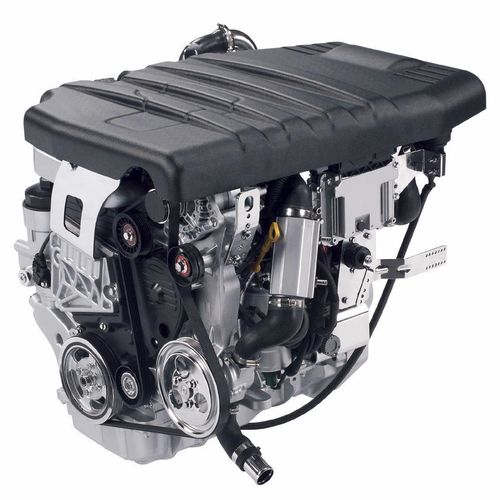

Marine engine MR 504 LX
diesel4-cylinderturbocharged

marine engine
marine engine
marine engine
Add to favorites
Compare this product

Go to the Vm Motori website for more information

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, direct injection, common rail
Product applications
for the construction industry, marine
Cooling system
water cooling
Emissions level
Tier 2
Other characteristics
4-stroke, compact
Power

170 ch
(170 hp)

Torque

310 Nm
(228.6443 ft.lb)

Rotational speed

2,600 rpm
(16,336.28 rad.min-1)

Displacement

2 l
(0.528 gal)

Weight

250 kg
(551.16 lb)

Length

802 mm
(31.6 in)

Width

720 mm
(28.3 in)

Height

757 mm
(29.8 in)

Description

The MR504LX is a 4-stroke, turbocharged and aftercooled diesel engine with electronically controlled direct injection. It offers excellent performance with low fuel consumption. Cooling is controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance. The oil circuit (which is cooled by means of a fresh water heat exchanger), water and air circuits have been designed to reduce external flexible pipes to minimum to reduce loss of liquids in the bilge. Auxiliary devices are driven by a Poly-V belt to ensure excellent power transfer and long life compared to traditional solutions. The dimensions and weight of the engine make the engine easy to install in small spaces.
