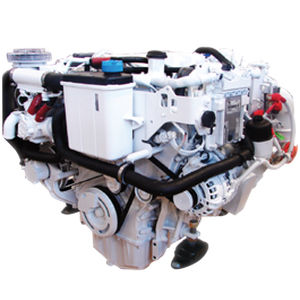

Marine engine MR 506 SS3
diesel6-cylinderturbocharged

marine engine
marine engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, common rail
Product applications
for the construction industry, marine
Cooling system
water cooling
Emissions level
Tier 3
Other characteristics
low-noise
Power

230 ch
(230 hp)

Torque

500 Nm
(368.7811 ft.lb)

Rotational speed

2,200 rpm
(13,823.01 rad.min-1)

Displacement

3 l
(0.793 gal)

Weight

365 kg
(804.69 lb)

Length

850 mm
(33.5 in)

Width

880 mm
(34.6 in)

Height

770 mm
(30.3 in)

Description

The new MR506SS3 engine offers a power of 230 HP and a torque of 500Nm at 2200 RPM. The main technical features are the 2000 bar injection system, a double chain driven overhead camshaft and 4 valves per cylinder. Thanks to the new variable geometry VGT turbocharger with ball bearings and a water cooled turbine, the engine is able to develop both a very high specific power and an immediate response from low revolutions. Reliable, fast, ecological and with low noise levels, the new V6 diesel engine of the MR506 family is able to meet the needs of every yachtsman.
