Marine engine MR 504 L3 series
diesel4-cylinderturbocharged

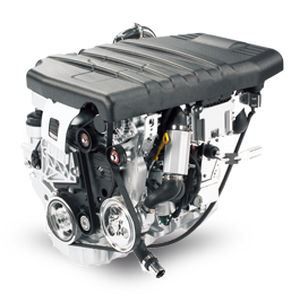

Marine engine - MR 504 L3 series - Vm Motori - diesel / 4-cylinder / turbocharged
Marine engine - MR 504 L3 series - Vm Motori - diesel / 4-cylinder / turbocharged
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, common rail
Product applications
marine
Cooling system
water cooling
Emissions level
Tier 3
Other characteristics
compact
Power

115 ch, 130 ch, 150 ch, 170 ch
(115 hp, 130 hp, 150 hp, 170 hp)

Torque

310 Nm, 360 Nm
(228.644266 ft.lb, 265.522374 ft.lb)

Rotational speed

2,000 rpm, 2,400 rpm
(12,566.3706 rad.min-1, 15,079.6447 rad.min-1)

Displacement

2 l
(0.528 gal)

Weight

250 kg
(551.16 lb)

Length

802 mm
(31.6 in)

Width

720 mm
(28.3 in)

Height

757 mm
(29.8 in)

Description

The VM MR504LB3 engine is a 4-cylinder 2.0L, light and compact, able to guarantee performance and reliability making them suitable for all conditions of use. The main technical features are the 1600 bar common rail injection system, single camshaft distribution controlled by toothed belt, balancer shafts, 4 valves per cylinder and fixed geometry turbocharger (FGT). Cooling is controlled by separate fresh - salt water circuits, with extractable hoses for easy maintenance. Fast and ecological, the MR504 engine is able to meet the needs of every yachtsman.
