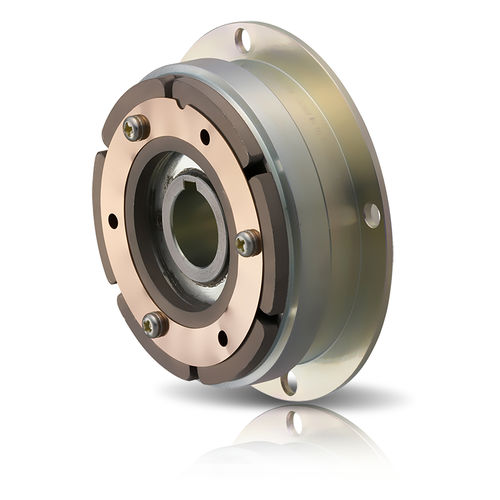

Electromagnetic brake

springflange-mounted

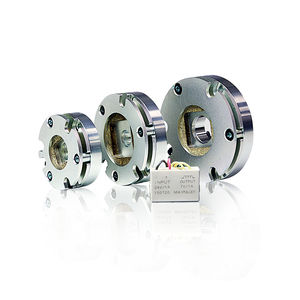

Highlights This model is a high-performance slim-type brake. Thanks to its superior response capabilities it allows for quickly stopping even high torques. The optimum mounting design can be selected from the three armature assembly types. Available torque values: 5 Nm to 320 Nm. Features of the electromagnetic brakes A wide range of electromagnetic brakes is available Different designs abailable RoHS-compliant Zero Backlash From 2.4 Nm to 350 Nm Wall-mountedtype Uses a flange-mounted stator. Designed to be short in the axial direction, requiring less installation space. Electromagnetic-actuated Clutches - Flange-mounted Type CS Electromagnetic-actuated Clutches - Bearing-mounted Type 111 Electromagnetic-actuated Brakes CSZ/BSZ Electromagnetic-actuated Clutches & Brakes - One-touch-mounted Type Clutch torque [N·m] 5 〜 320 Operating temperature [℃ ] −10 〜＋ 40 Backlash Zero Brake torque [N·m] 5 〜 320 Operating temperature [℃ ] −10 〜＋ 40 Backlash Zero Clutch/brake torque [N·m] 2.4 〜 10 Operating temperature [℃ ] −10 〜＋ 40 Backlash Zero Stator and rotor are combined and directly mounted on stationary parts, such as frames, and fixed in place. These are short in the axial direction and can make effective use of space near windows. Select the armature according to the coupling type used (through-shaft, butt shaft, etc.).
