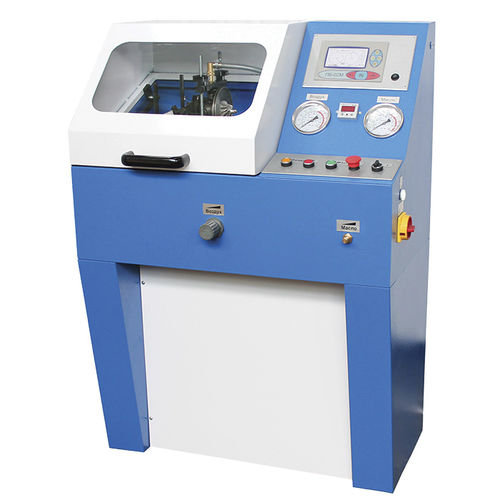

Horizontal balancing machine DBST-10dynamicpneumaticfor turbochargers
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Type
- dynamic
- Operation
- pneumatic
- Applications
- for turbochargers
- Other characteristics
- high-accuracy, two-plane, automobile
- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 300 rpm
(1,885 rad.min-1)- Weight on rotor
Max.: 15 kg
(33.1 lb)Min.: 0.1 kg
(0.2 lb)
Description
CHRA TURBO BALANCING MACHINE MODEL DBST-10
Maximal weight, kg 15
Maximal diameter, mm 280
Rotor length, mm 230
Accuracy, g.mm/kg 0,4
The stand serves for low-speed balancing of the rotor assembly in the turbocharger cartridge and is also used to check the turbocharger after the assembly operation for oil leakage. The stand is necessary to eliminate the "technological" imbalance that occurs during the assembly of the turbocharger cartridge. The presence of a hydraulic system with oil heating makes it possible to recreate conditions close to real during balancing.
