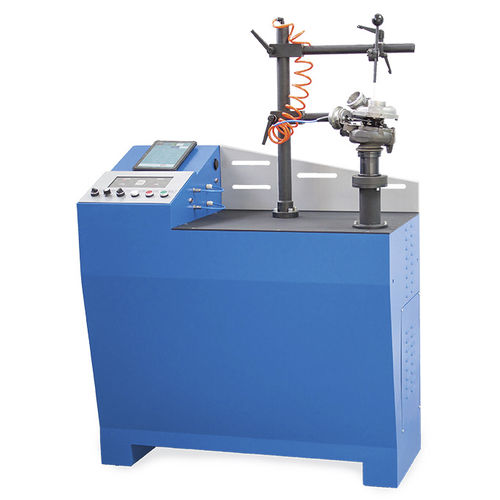

Air flow calibration and test bench GEOMET-500

manualfor turbochargersfor workshops

GEOMET-500 STAND FOR CALIBRATING A VARIABLE GEOMETRY TURBOCHARGER “Geomet-500” is a bench for adjustment of turbochargers with variable geometry: fast-payback equipment that allows to effectively restore turbocharger settings to factory standards after cartridge or actuator replacement. The equipment reduces turbine tuning time and improves the quality of repairs, creating a comfortable and safe working environment. On the stand it is easy to adjust the extreme position of the blades of the nozzle apparatus, thus getting rid of the effect of “foreblow” or “underblow”, detrimental to the performance of the car. In addition, it is possible to adjust the length of the actuator rod to set the moment of operation of the air flow control mechanism.
