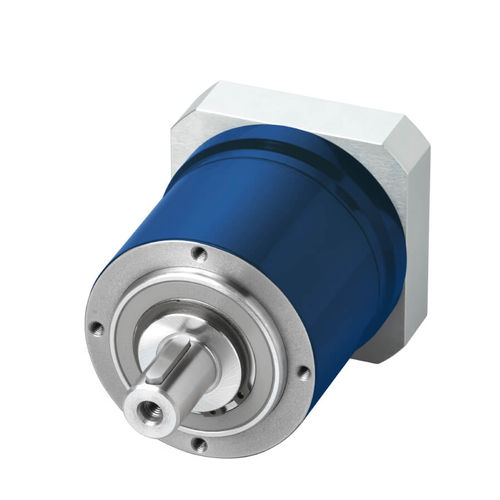

Planetary servo-gearbox MPL seriescoaxial100 - 200 Nm200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 100 - 200 Nm, 200 - 500 Nm, 50 - 100 Nm
- Rotational speed
Max.: 8,000 rad.min-1
(1,273.2395 rpm)Min.: 4,500 rad.min-1
(716.1972 rpm)- Backlash
Max.: 0.17 °
Min.: 0.13 °
- Gear ratio
Max.: 100 unit
Min.: 3 unit
Description
The low backlash planetary gearboxes for high acceleration torques. The coaxial gearboxes are suitable for universal use thanks to their particularly compact design, symmetrical construction and adaptable motor connection.
Coaxial gearbox with solid shaft with key
