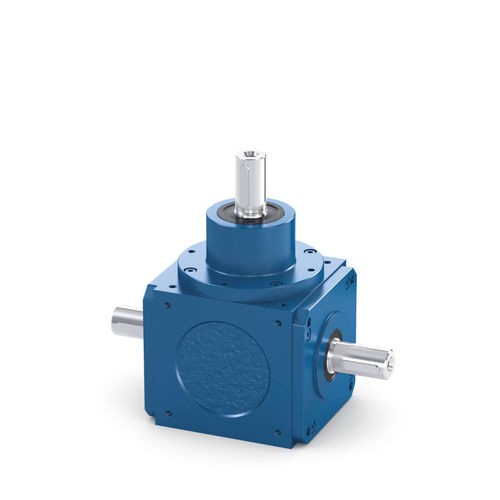

Spiral bevel gearbox L
right angle200 - 500 Nm100 - 200 Nm

spiral bevel gearbox
spiral bevel gearbox
Add to favorites
Compare this product


Characteristics

Type
spiral bevel
Shaft orientation
right angle
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 50 - 100 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 10 - 20 Nm, 5 - 10 kNm
Performance
precision
Applications
shaft
Other characteristics
universal
Rotational speed

Min.: 0 rad.min-1
(0 rpm)

Max.: 4,500 rad.min-1
(716.2 rpm)

Backlash

0.07 °, 0.11 °, 0.16 °

Gear ratio

Min.: 1 unit

Max.: 6 unit

Description

VOGEL spiral bevel gearboxes are suitable for universal use thanks to their machine-friendly construction and adaptability. The efficient and reliable top performer is available in different versions. Like all VOGEL spiral bevel gearboxes, they are manufactured using the modern production method of ground circular arc teeth according to Klingelnberg. For customers, this means greater toothing quality and precision as well as even faster delivery times. L Angular gearbox with solid shaft with key
