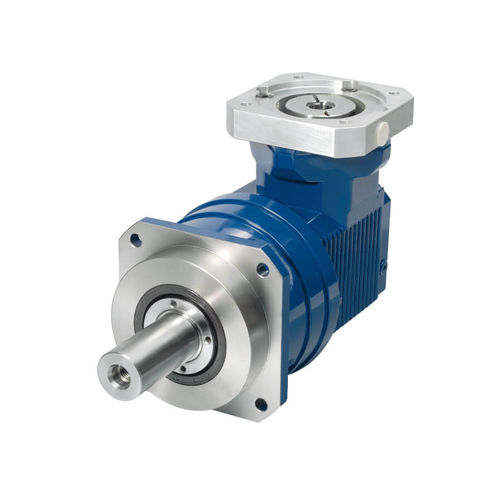

Spiral bevel servo-gearbox SKPR right angle100 - 200 Nm200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel
- Shaft orientation
- right angle
- Torque
- 100 - 200 Nm, 200 - 500 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Performance
- high-torque
- Applications
- for valves
- Rotational speed
Min.: 6,500 rad.min-1
(1,034.5071 rpm)Max.: 7,500 rad.min-1
(1,193.6621 rpm)- Backlash
Min.: 0.05 °
Max.: 0.08 °
- Gear ratio
Min.: 12 unit
Max.: 100 unit
Description
VOGEL servo spiral gearboxes are ideal for maximum demands on dynamics. The sturdy and durable power packs are flexible to use and can be installed in any position thanks to a flexible lubricant system. Like all VOGEL spiral bevel gearboxes, they are manufactured using the modern production method of ground circular arc teeth according to Klingelnberg. For customers, this means greater toothing quality and precision as well as even faster delivery times.
SKPR
Angular gearbox with solid shaft without key
Catalogs
2018 Servo gearboxes
72 Pages
