Overview

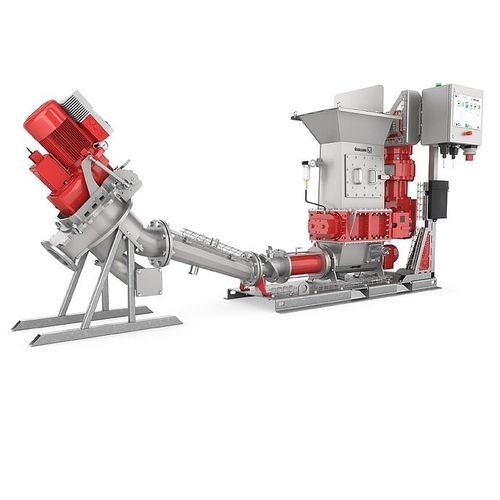

The RedUnit is Vogelsang's modular industrial grinder that combines shredding and pumping in a single compact unit. Designed for heavy-duty processing of high-volume dry solids, it performs coarse or fine reduction to improve pumpability and downstream processing while minimizing intermediate conveyors or separate pumps.

Key benefits

• Modular design for customer-specific configurations
• Integrated grinding and pump options to reduce system footprint
• QuickService concept for fast replacement of wear parts
• Factory-assembled Quality Cartridge mechanical seal for safe, rapid seal changes
• Lower overall energy use by eliminating intermediate transfer equipment
• Optional plug-and-play control with touchscreen for system overview

Product concept and operation
The RedUnit combines twin-shaft ripper grinding technology with selectable grinding stages and optional pump modules to deliver a single-step solution for making solids pumpable. Intelligent control (optional) provides system monitoring and parameter adjustment. Monolithic ripper rotors and service-friendly layouts enable fast maintenance and reduced downtime.

Models

• RedUnit XRL136 — Twin-shaft grinder for soft and fragile solids (fruits, vegetables, animal by-products). Lower torque design; max inlet 280 mm × 320 mm; processes solids up to ~150 mm diameter; different ripper rotor widths available to adjust particle size.
• RedUnit XRL186 — Universal grinder for medium to high throughput (up to ~60 m3/h depending on material). Handles organic materials (bones, intestines) and tougher inorganic items (plastics, metal cans, drywall). QuickService design for minimal downtime.
• RedUnit XRL260 — High-capacity grinder for large, tough materials (examples up to ~100 t/h). Suitable for whole carcasses, organic waste and recycling applications. Driven by two geared motors (e.g. 2 × 37 kW); rotor shafts removable from the side to simplify cleaning and service.

Features

• Compact footprint enabling installation in constrained spaces
• Configurable pump pairings (progressive cavity CC series, rotary lobe VX series) and optional RotaCut integration
• Energy savings by removing the need for intermediate pumps or feed screws
• QuickService for rapid wear-part replacement without full disassembly
• Quality Cartridge pre-assembled mechanical seal for reliable, fast replacement
• Monolithic ripper rotors machined from a single steel block for even torque transfer and simplified spare parts

Options

• Optional control unit (plug-and-play) with touchscreen
• Stainless steel constructions for abrasive or corrosive applications
• Various pump pairings and grinding-stage configurations to match site requirements

Application areas
Industrial solids reduction and pumping in food and beverage processing (meat and poultry plants, by-products), organic waste processing, recycling and other heavy industrial contexts requiring integrated shredding and pumping.

Technical specifications

• Series: RedUnit
• Models: XRL136, XRL186, XRL260
• XRL136: max inlet 280 mm × 320 mm; processes solids up to ~150 mm diameter
• XRL186: nominal capacity up to ~60 m3/h (material dependent)
• XRL260: very high throughput (examples up to ~100 t/h); drive example 2 × 37 kW geared motors
• Drive: twin-shaft ripper grinder with configurable cutting widths
• Sealing: Vogelsang Quality Cartridge mechanical seal (pre-assembled)
• Service concept: QuickService for fast rotor, blade and seal replacement
• Construction: standard steel and stainless steel variants available
• Control: optional integrated control unit with touchscreen (plug-and-play)
