Compact waste crusher-shredder XRipper®

ruggedfor metalsfor industrial applications

Overview
The XRipper® twin-shaft grinder by Vogelsang is a robust wastewater shredder engineered to reduce solid and disruptive matter (wet wipes, textiles, wood, plastics, bulky waste) and to protect pumps and downstream equipment from clogging, blockages and damage. The design emphasizes uptime, simple on-site maintenance and long service life.

Benefits

• Economical size reduction of tangled and fibrous solids such as wet wipes, textiles and bulk waste
• Protection of pumps, valves and downstream components against blockages and damage
• Quick, on-site maintenance with easy access to wear parts
• Improved reliability through cartridge mechanical seal technology and robust construction

Application & Performance
The XRipper series reliably breaks down fibrous and entangling materials in sewer networks, pumping stations and wastewater treatment plants. Monolithic Ripper rotors and a torsionally stiff twin-shaft design deliver consistent size reduction even with coarse or high-volume disruptive matter, reducing downstream clogging and improving operational availability.

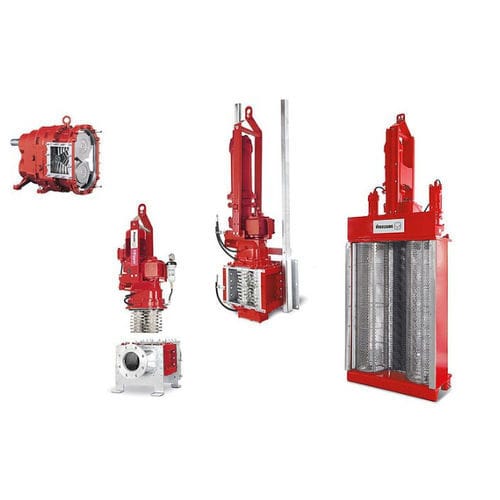

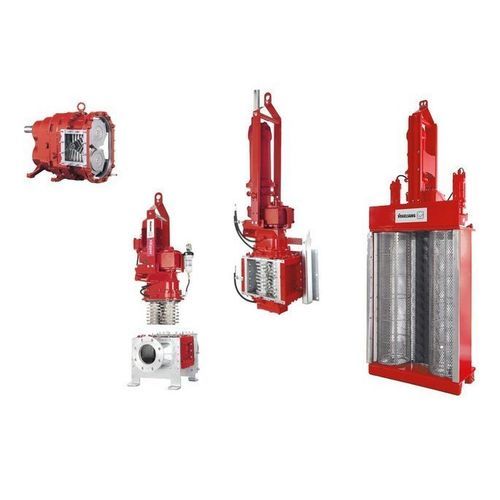

Models

• XRipper® XRS: Economical, service-friendly twin-shaft grinder with easy access to wear parts; suited to coarse and high-volume foreign matter.
• XRipper® XRP: Compact inline twin-shaft grinder for pipe installations with motor mounted above and a lift-out functional block for maintenance without pipe dismantling.
• XRipper® XRC-SIK: Version for open channels and shafts with Sewer Integration Kit (SIK) allowing positioning and lift-out on guide rails for service.
• XRipper® XRG: High-capacity grinder for maximum flow rates; lateral high-capacity screens allow large volumes to pass while retaining disruptive matter for continuous shredding.

Features

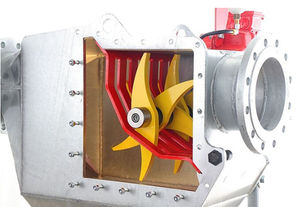

• Monolithic Ripper rotors machined from a single block of special steel for even torque transfer and fewer replaceable parts
• Axial wear plates with counter-cutters to prevent bypassing and ensure uniform shredding
• Self-cleaning action from different shaft speeds that actively rake out settled material
• Large-diameter shafts and rotors for torsional stiffness and blockage resistance
• Rigid housing design to extend bearing and gearbox life

Options

• Rotor blade widths 6–11 mm to adapt size-reduction ratio; hardened special steel standard, stainless variants available
• Flow-optimized housings for XRP and XRC to maximize throughput with compact dimensions
• ATEX versions for explosive-hazard areas
• Material variants: gray cast iron (XRS) or steel; stainless and cast-stainless options available; wear parts in stainless or highly wear resistant steel
• QD (QuickD) additional bearing for long designs or severe blockages to prevent shaft bending
• Connector/separation box to remove heavy material (stones, metal parts) upstream of the grinder
• Sewer Integration Kit (SIK) for direct channel installation and lift-out maintenance
• Drive options: geared motors, parallel-shaft gearboxes, flood-capable variants, or hydraulic drives

Downloads
Brochure and ePaper: XRipper - The robust wastewater grinder.

Technical specifications

• Twin-shaft grinding principle with monolithic Ripper rotors
• Suitable for municipal wastewater, pumping stations, channels, shafts and selected industrial fluids depending on model
• Rotor blade widths: 6–11 mm
• Standard materials: hardened special steel rotors and wear plates; housing in gray cast iron or steel; stainless options available
• Cartridge mechanical seal technology
• Self-cleaning rotor design (different shaft speeds)
• Optional QD third bearing for increased stability
• ATEX option available
• Drive options: electric geared motors, parallel-shaft gearboxes, hydraulic drives; flood-capable versions available
• Available models: XRS, XRP, XRC-SIK, XRG
